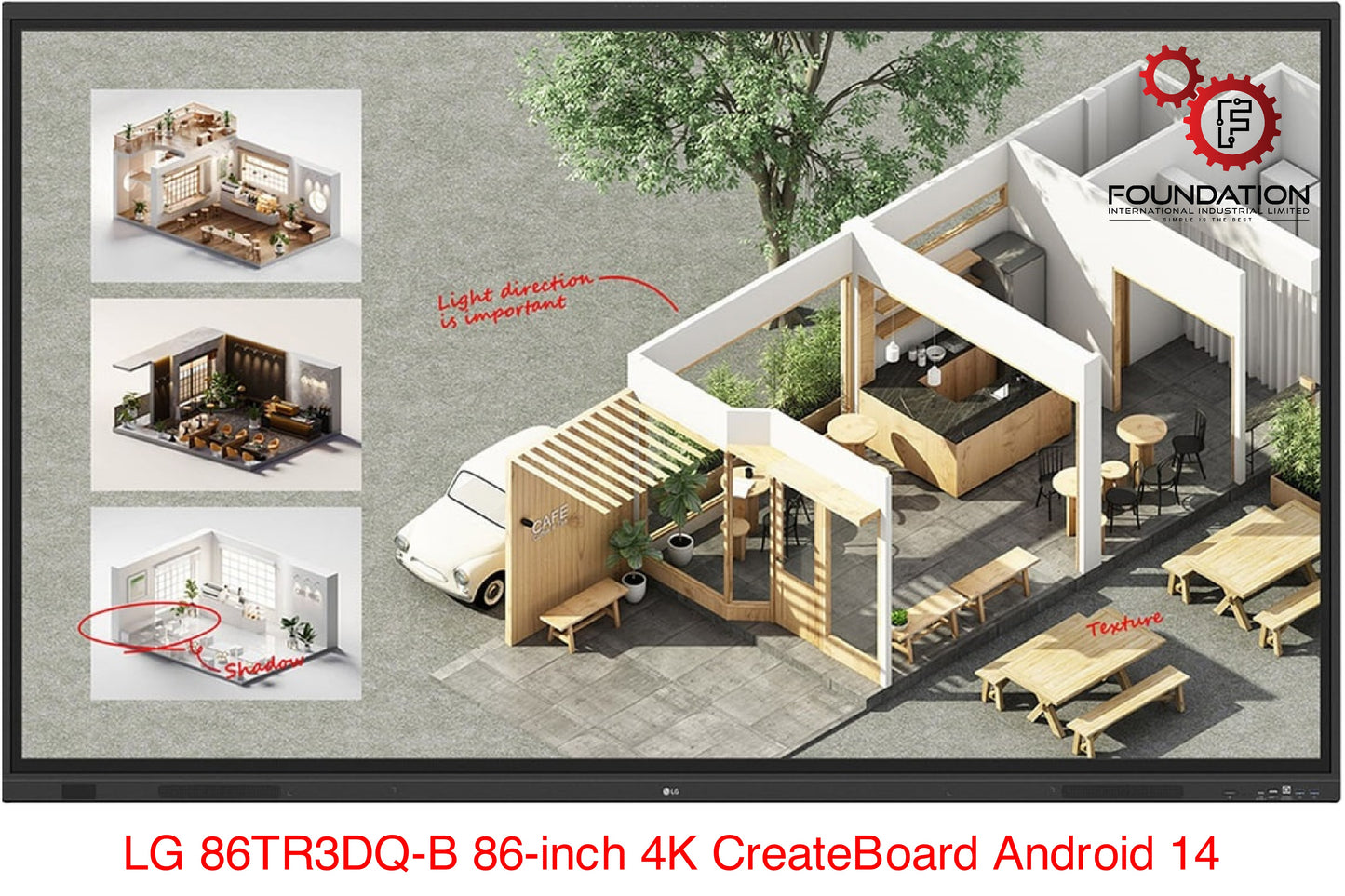

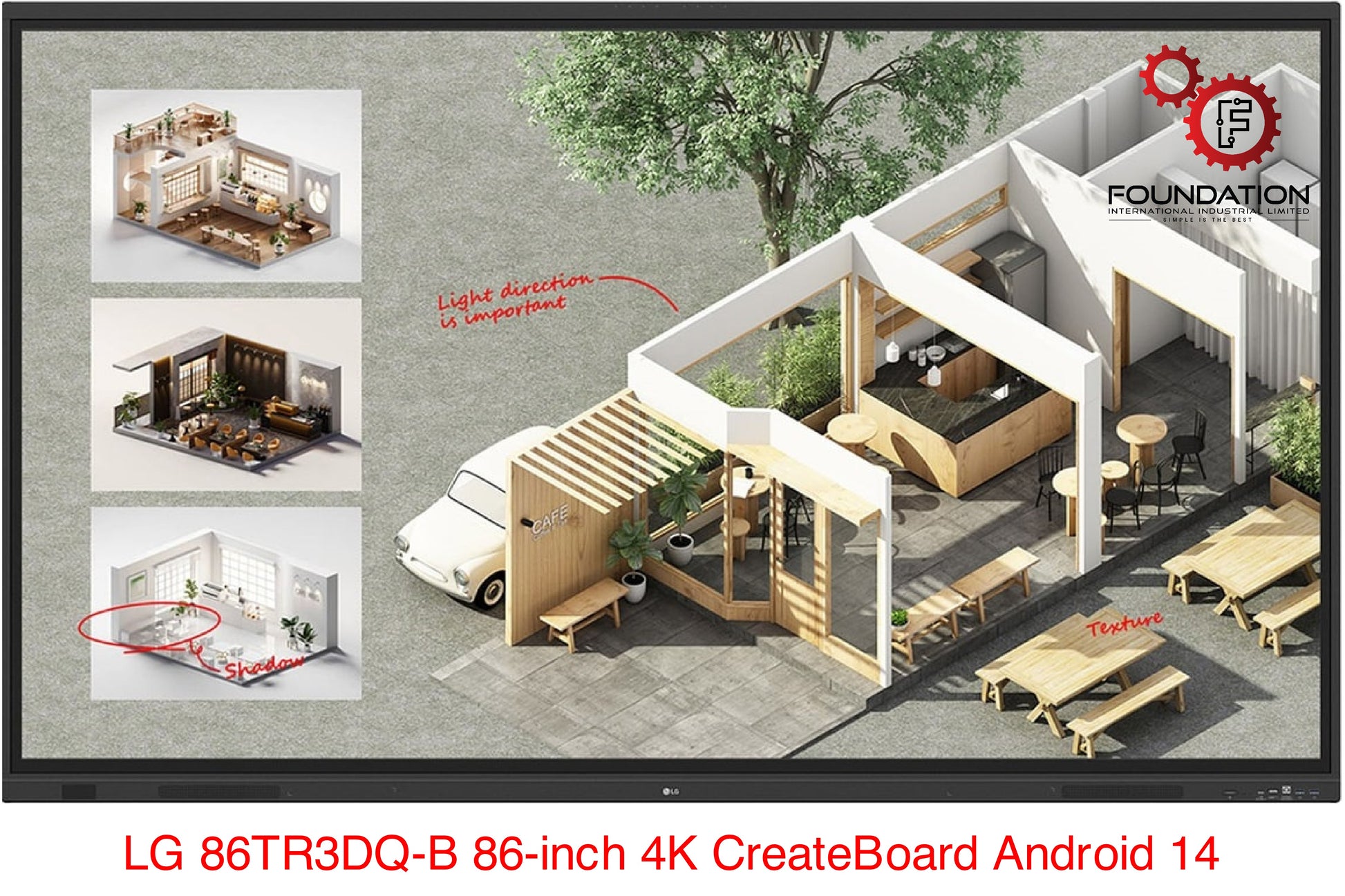

LG 86TR3DQ-B 86" CreateBoard Interactive Panel 4K Android 14 Google EDLA 2025 NEW Model
LG 86TR3DQ-B 86-inchs CreateBoard Interactive Panel 4K Android 14 Google EDLA
All Spec
PANEL
-
Screen Size (Inch)
86"
-
Panel Technology
IPS
-
Back Light Type
Direct
-
Aspect Ratio
16:9
-
Native Resolution
3840x2160 (UHD)
-
Refresh Rate
60Hz
-
Brightness
400nit (Typ.)
-
Contrast Ratio
1200:1
-
Dynamic CR
5000:1
-
Color Gamut
NTSC 72%
-
Viewing Angle (H x V)
178 x 178
-
Color Depth (Number of Colors)
10bit(8bit + FRC)
-
Response Time
8ms
-
Surface Treatment (Haze)
25%
-
Life time
50,000 Hrs(L50, Min.)
-
Operation Hours (Hours/Day)
16/7
-
Portait / Landscape
No / Yes
CONNECTIVITY
-
HDMI In
Yes(3, Front1/Back2)
-
DP In
Yes(1)
-
RGB In
Yes(1, VGA)
-
Audio In
Yes(1)
-
RS232C In
Yes(1)
-
RJ45(LAN) In
Yes(1)
-
USB In
USB3.0 Type A(5) - Front2/Back2/Top1
USB2.0 Type A(1),
USB Type-C(2, For the front 1, PD 65W without OPS/
DP-Alt ) - Front1/Back1 -
HDMI Out
Yes(1)
-
Audio Out
Yes(1), Optical Yes(1, SPDIF)
-
Touch USB
Yes(3, Front1/Back2)
-
RJ45(LAN) Out
Yes(1)
MECHANICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
T/R/L/B：25.6/15/15/43.5mm
-
Weight (Head)
54.1Kg
-
Packed Weight
70.7Kg
-
Monitor Dimensions (W x H x D)
1957×1170.8×99.7mm
-
Handle
Yes
-
VESA Standard Mount Interface
800x600mm
-
Carton Dimensions (W x H x D)
2110×1291×225mm
PROTECTION GLASS
-
Thickness
3.2
-
Tempered / Chemical strengthening
Yes
-
Anti-Reflective
Yes
-
Shatter-Proof
Yes
FEATURE - HARDWARE
-
Internal Memory (eMMC)
64GB
-
Wi-Fi/BT (Built-in)
Yes (Slot type)
-
Power Indicator
Yes
-
Local Key Operation
Yes
-
Auto Brightness Sensor
Yes
FEATURE - SOFTWARE
-
OS Ver. (webOS)
Android14(EDLA)
-
Booting Logo Image
Yes
-
RS232C Sync
Yes (LG RS232C Command)
-
PIP
Yes (1) external source
-
PBP
Yes(4)
-
Screen Share
Yes (CreateBoard Share)
-
Setting Data Cloning
Yes
-
Crestron Connected
Yes
-
Smart Energy Saving
Yes (Energy Saving)
-
Wake on LAN
Yes
-
Network Ready
Yes (Fast Power On)
-
HDMI-CEC
Yes
-
webRTC
Yes(CreateBoard Share website mirr used WebRTC)
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 90%
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Smart Energy Saving (70%)
Yes
-
DPM
Yes
-
Power off
＜0.5W
-
Max.
400W(measured:370W)
-
Typ.
235W(measured:215W)
SOUND
-
Speaker (Built-in)
speaker：Yes (20Wx2 + 20W)
output：Yes (18Wx2 + 18W)
CERTIFICATION
-
Safety
IEC 62368-1:2018; UL 62368-1:2019
-
EMC
FCC Class "A" / CE / KC
-
ERP / Energy Star
Yes / Yes
-
ePEAT(US only)
Yes(Bronze)
OPS COMPATIBILITY
-
OPS Type compatible
Yes (Slot)
-
OPS Power Built-in
Yes
SOFTWARE COMPATIBILITY
-
Connected Care
Yes
LANGUAGE
-
OSD
English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian
ACCESSORY
-
Basic
Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
-
Optional
WIB9060H
SPECIAL FEATURE
-
Overlay Touch Compatibility
Yes
-
Conformal Coating (Power Board)
Yes
-
Power Protection
Yes
DEDICATED FEATURE - TOUCH
-
Available Object Size for Touch
Ø2 mm ↑
-
Response Time ('Paint' app on Windows 10 PC)
5ms ↓
-
Accuracy (Typ.)
±1mm
-
Interface
USB2.0
-
Protection Glass Thickness
3.2mm (Anti-Glare)
-
Protection Glass Transmission
88% (Typ.)
-
Operating System Support
Windows 10/ Windows 8/ Windows 7/ Android/ Linux/ macOS
(Linux/ macOS 1 Point) -
Multi Touch Point
Max 50 Point
DEDICATED FEATURE - CREATE BOARD
-
CPU
Octa core A73x4 +A53x4 (A311D2)
-
GPU
Mali-G52 MP8
-
Memory(RAM)
8GB
-
Storage
64GB
-
Wi-Fi
WiFi 6E
-
LAN
Gigabit LAN
-
Bluetooth
Bluetooth 5.3
-
OS ver. (Android)
Android 14(EDLA)
