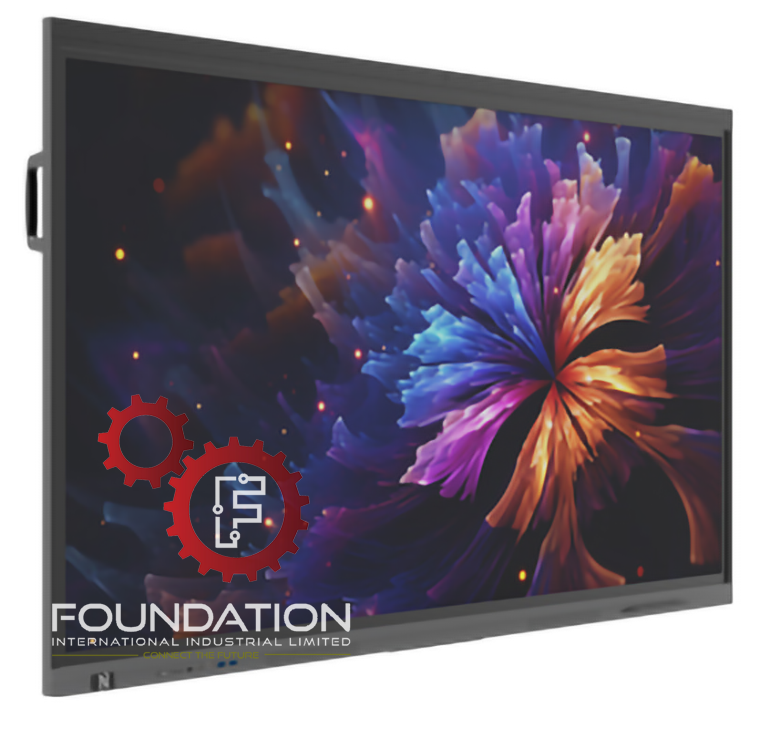

FIFP75A1 75 inch 4K Ultra HD display Infrared Interactive Flat Panel
FIFP75A1 75 inch 4K Ultra HD display Infrared Interactive Flat Panel
48MP wide-angle autofocus, sound source positioning, gesture switching image AI mode
Support 2.2 channel, front treble & back subwoofer
Support Wi-Fi 6, dual-band 2.4G/5G, AP+STA working mode
NFC lock screen + unlock, pen pick-up detection
|
Specification |
Type |
Parameter |
||
|---|---|---|---|---|
| Display |
Size |
75“ |
||
|
Response Time |
8 ms | |||
| Aspect Ratio | 16:9 | |||
| Display Area |
1650.24(H) x 928.26(V)（mm） |
|||
| Resolution |
3840（H）× 2160（V） |
|||
| Pixel Pitch |
0.4296 (W) x 0.4296(H) |
|||
| Refreshing Frequency | 60Hz | |||
| Display Color | 1.07B (10bit) | |||
| NTSC | 72% | |||
| Contrast Ratio |
1200:1/4000:1/5000:1/6000:1 |
|||
| Viewing Angle | 178°(H/V) | |||
| Back Light Unit | DLED | |||
| Brightness (Typ) | 450cd/m2 | |||
|
Life Time |
≥30000 hrs | |||
|
Speakers |
Sound Channel |
2.2 | ||
| Speaker Power |
2×16W(treble)+2×16W(bass) |
|||
| Camera | Pixel | 48MP | ||
| Quantity | 1 | |||
| Location |
Upper frame |
|||
| Viewing Angle |
D=89° H=75° V=50° |
|||
| Function |
Support AI mode gesture switching image, sound source localization, and voice enhancement |
|||
| Microphone | Distance of a Pickup |
0~8m |
||
| Quantity |
8 |
|||
| Pickup Angle |
0°~180° |
|||
| Function | Support echo cancellation, intelligent noise reduction, reverberation suppression | |||
|
Touch System |
Sensing Type |
Infrared Touch | ||
| Supported System | Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome | |||
| Android Touch Point | 20 points touch | |||
| OPS Touch Point |
40 points touch |
|||
| Min. Object Size | 1.5mm(over 90% area) | |||
| Touch Tool |
Opaque objects(Finger, stylus pen, etc.) |
|||
| Response Time | ≤2.0ms | |||
| Accuracy |
±0.5mm (over 90% area) |
|||
| Writing Height | ≤2mm | |||
|
Writing Display |
Single stylus pen with two colors |
|||
| Interpolation Resolution | 32767 (W) × 32767(D) | |||
| OperatingSystem |
Chip |
RK3588 |
||
| System Version | Android 13.0 | |||
|
Frequency |
2.4GHZ | |||
| CPU |
Quad-core A76 + Quad-core A55 |
|||
| GPU |
ARM Mali-G610 MC4 |
|||
| RAM | 8GB | |||
| ROM | 64GB | |||
| OSD |
Simplified Chinese, Traditional Chinese, Japanese, English, Korean, Vietnamese, Thai, Russian, Swedish, Portuguese, Polish, Dutch, Italian, French, Indonesian, Finnish, Spanish, German, Danish, Czech, and Arabic, 21 languages in total |
|||
|
Bluetooth |
Version |
5.2 | ||
| Operation Frequency | 2.4GHz | |||
| Operation Distance | 0~10m | |||
| Remark |
With wireless module |
|||
| Wi-Fi |
Version |
IEEE802.11a/b/g/n/ac/ax |
||
| Operation Frequency | 2.4GHz/5GHz | |||
| Operation Distance | 0~10m | |||
| Remark |
With wireless module |
|||
|
Power |
Power Requirements |
100-240V~, max 90-264V~50/60Hz 3.5A | ||
| Max Power | 400W | |||
| Standby Power | ≤0.5W | |||
| Physical Specifications |
Dimension(L × W × T) |
1705.8×1041.7×115.2mm |
||
| Dimension(package) L × T × H |
1860*220*1160mm |
|||
|
Thickness of Machine (including bracket) |
151.2mm | |||
| VESA | 600×400mm | |||
| Wall-hanging Screw Spec | M8×20mm | |||
| Net Weight |
52.8±1KG |
|||
| Gross Weight |
63.6±1KG |
|||
|
Accessories |
Power Cord |
×1 | ||
|
Stylus Pen |
×1 | |||
| Wall Mount | ×1 | |||
|
Quick Start |
×1 | |||
| Environmental Conditions |
Operation Temperature |
0℃~40℃ | ||
| Operation Humidity | 10%~90%RH | |||
| Storage Temperature | -20℃~60℃ | |||
| Storage Humidity | 10%~90%RH | |||
| Altitude | <5000m | |||
| Standard Module | Wireless Wi-Fi Model |
SI07B |
||
|
Optional Module |
OPS Module Dimension |
OPS size(120mm*180mm*30mm) OPS size(195mm*180mm*30mm) OPS size(195mm*180mm*42mm) |
||
