- Sku:
- Vendor: FOUNDATION INTERNATIONAL INDUSTRIAL LIMITED

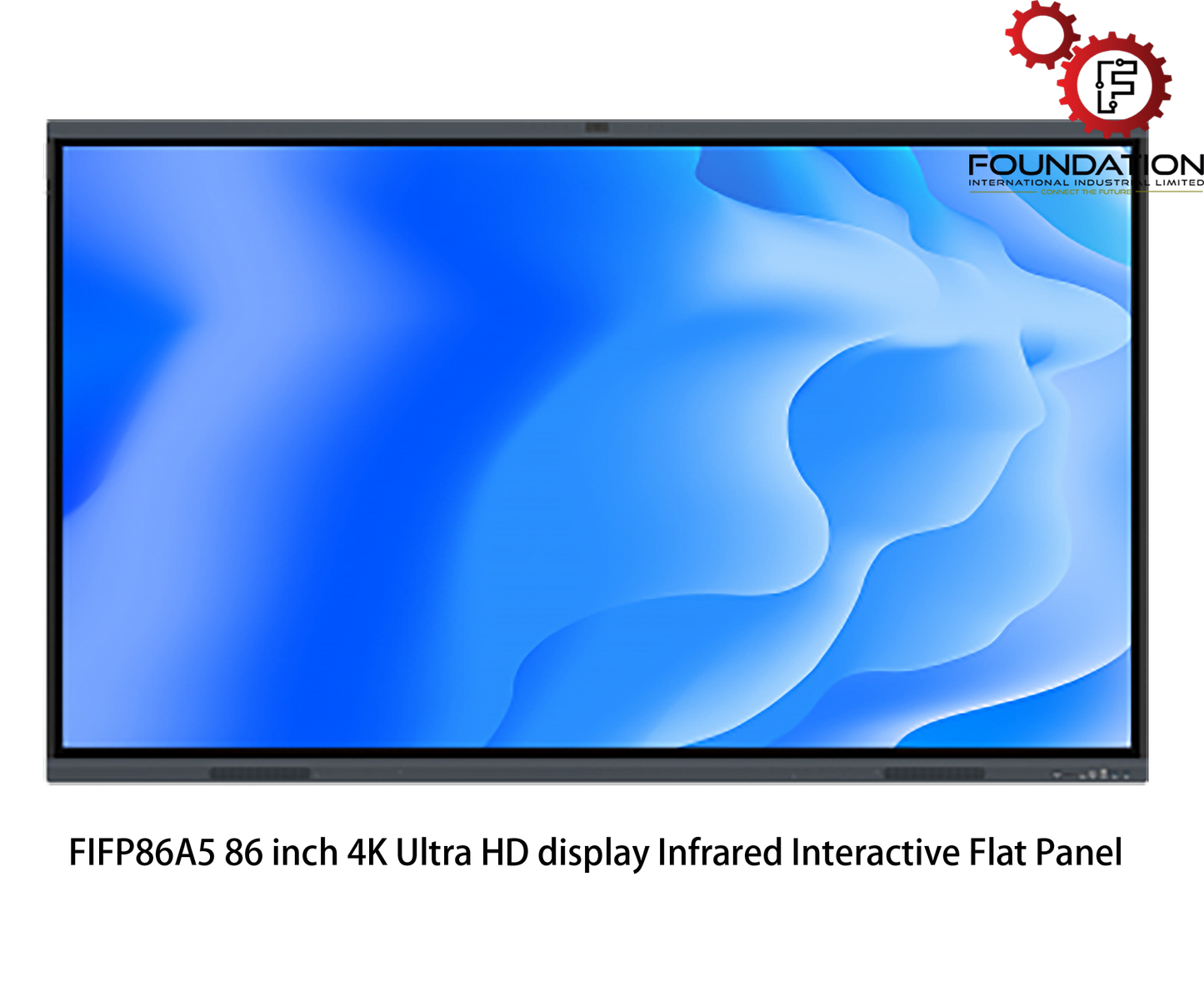

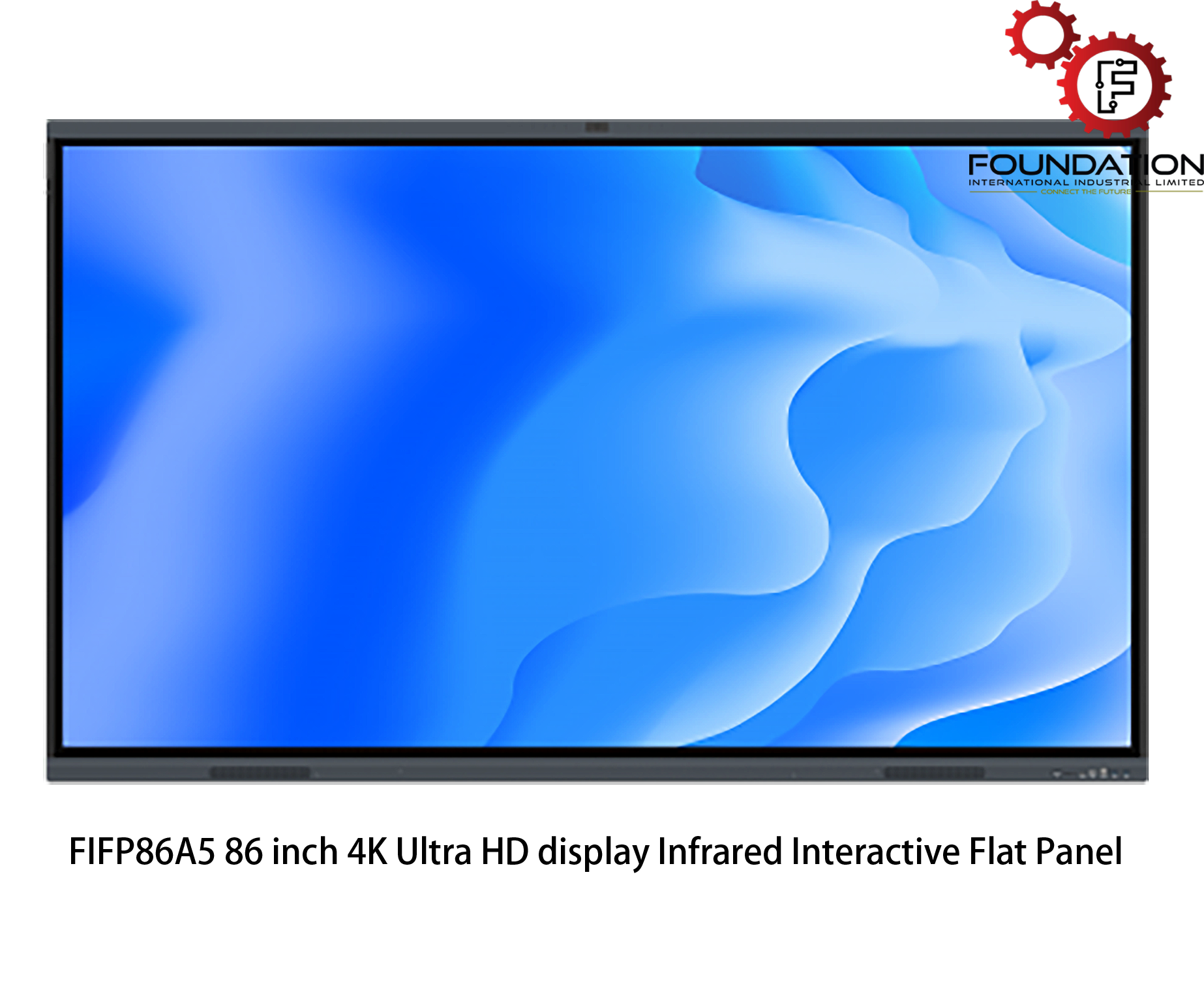

FIFP86A5 86 inch 4K Ultra HD display Infrared Interactive Flat Panel
FIFP86A5 86 inch 4K Ultra HD display Infrared Interactive Flat Panel, support for full-channel 4K UI display.
2 front USB 3.0 ports + 2 onboard USB 3.0 ports, supporting switching with channels.
2 onboard full-featured Type-C ports (15W) *1; 1 front Type-C port supporting PD 65W
|
Specifications |
Model |
Parameter |
||
|---|---|---|---|---|
| Display |
Size |
86" |
||
|
Response Time |
8 ms |
|||
|
Aspect Ratio |
16: 9 |
|||
|
Display Area |
1895.04(H)×1065.96(V)mm |
|||
|
Resolution |
3840(H) × 2160(V) |
|||
|
Pixel Pitch |
0.4935×0.4935mm |
|||
|
Refreshing Frequency |
60Hz |
|||
|
Display Color |
1.07B (10bit) |
|||
|
NTSC |
72% |
|||
|
Contrast Ratio |
1200:1/5000:1/6000:1 |
|||
|
Viewing Angle |
178°(H/V) |
|||
|
Back Light Unit |
DLED |
|||
|
Brightness(typ) |
350cd/m2 |
|||
|
Life Time |
≥30000 hrs |
|||
|
Audio |
Sound Channel |
2.0 |
||
|
Speaker Power |
2 × 16W |
|||
|
Camera |
Pixel |
50MP |
||
|
Quantity |
1 |
|||
|
Location |
Upper frame |
|||
| Function |
Supports sound source localization, Autoframing, 4K photography, camera image super-resolution, and multimodal recognition. |
|||
| Microphone |
Distance of a Pickup |
0~8m |
||
|
Quantity |
8 |
|||
| Function |
Support intelligent noise reduction, gain control, echo cancellation, reverberation suppression |
|||
|
Touch System |
Sensing Type |
Infrared touch |
||
|
System |
Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
|||
|
Touch Point |
10-point writing, 50-point touch (Android 32 points, Windows 50 points) |
|||
|
Min. Object Size |
2mm |
|||
|
Touch Tool |
Finger; passive IR pen |
|||
|
Response Time |
≤2.5ms |
|||
|
Accuracy |
±1mm |
|||
|
Writing Height |
≤1mm |
|||
|
Writing Display |
Single stylus pen with two colors |
|||
|
Interpolation Resolution |
32767(W) × 32767(D) |
|||
| Operating System |
Chip |
RK3576 |
||
|
System Version |
Android 14.0 |
|||
|
Frequency |
2.2GHZ |
|||
|
CPU |
A72*4+A53*4 |
|||
|
GPU |
G52 MC3 |
|||
|
RAM |
8G |
|||
|
ROM |
128G |
|||
| OSD |
English, Simplified Chinese, Traditional Chinese |
|||
| Bluetooth |
Version |
5.2 |
||
|
Operation Frequency |
2.4GHz |
|||
|
Operation Distance |
0~10m |
|||
|
Remark |
Function achieved via wireless module SI07B |
|||
| Wi-Fi |
Version |
802.11ac/b/g/n/a/ax |
||
|
Operation Frequency |
2.4GHz/5GHz |
|||
|
Operation Distance |
0~10m |
|||
|
Remark |
Function achieved via wireless module SI07B |
|||
|
Power |
Power Requirements |
100-240V~50/60Hz 5.5A |
||
|
Max Power |
550W |
|||
|
Standby Power |
≤0.5W |
|||
| Physical Specifications |
Dimension(L × W × T) |
1957×1178.5×99.4mm |
||
|
Dimension(package) L × T × H |
2120×220×1325mm |
|||
|
Thickness of Machine (including bracket) |
129.4mm（WIB9060G） |
|||
|
VESA |
800×600mm |
|||
|
Wall-hanging Screw Spec |
M8 × 25mm |
|||
|
Net Weight |
53+/-1Kg |
|||
|
Gross Weight |
68.55+/-1Kg |
|||
|
Accessories |
Power Cord |
×1 |
||
|
Stylus Pen |
×2 |
|||
|
Wall Mount |
×1 |
|||
|
Quick Start |
×1 | |||
| Optional Module |
OPS Module Dimension (L × W × H) |
OPS (120mm*180mm*30mm)European standard |
||
| Standard Module |
Wireless Module |
SI07B（Wi-Fi 6.0） |
||
| Environmental Conditions |
Operation Temperature |
0℃～40℃ |
||
|
Operation Humidity |
10%~90%RH |
|||
|
Storage Temperature |
-20℃~60℃ |
|||
|
Storage Humidity |
10%~90%RH |
|||
|
Altitude |
＜5000m |
|||
