- Sku:
- Vendor: FOUNDATION INTERNATIONAL INDUSTRIAL LIMITED

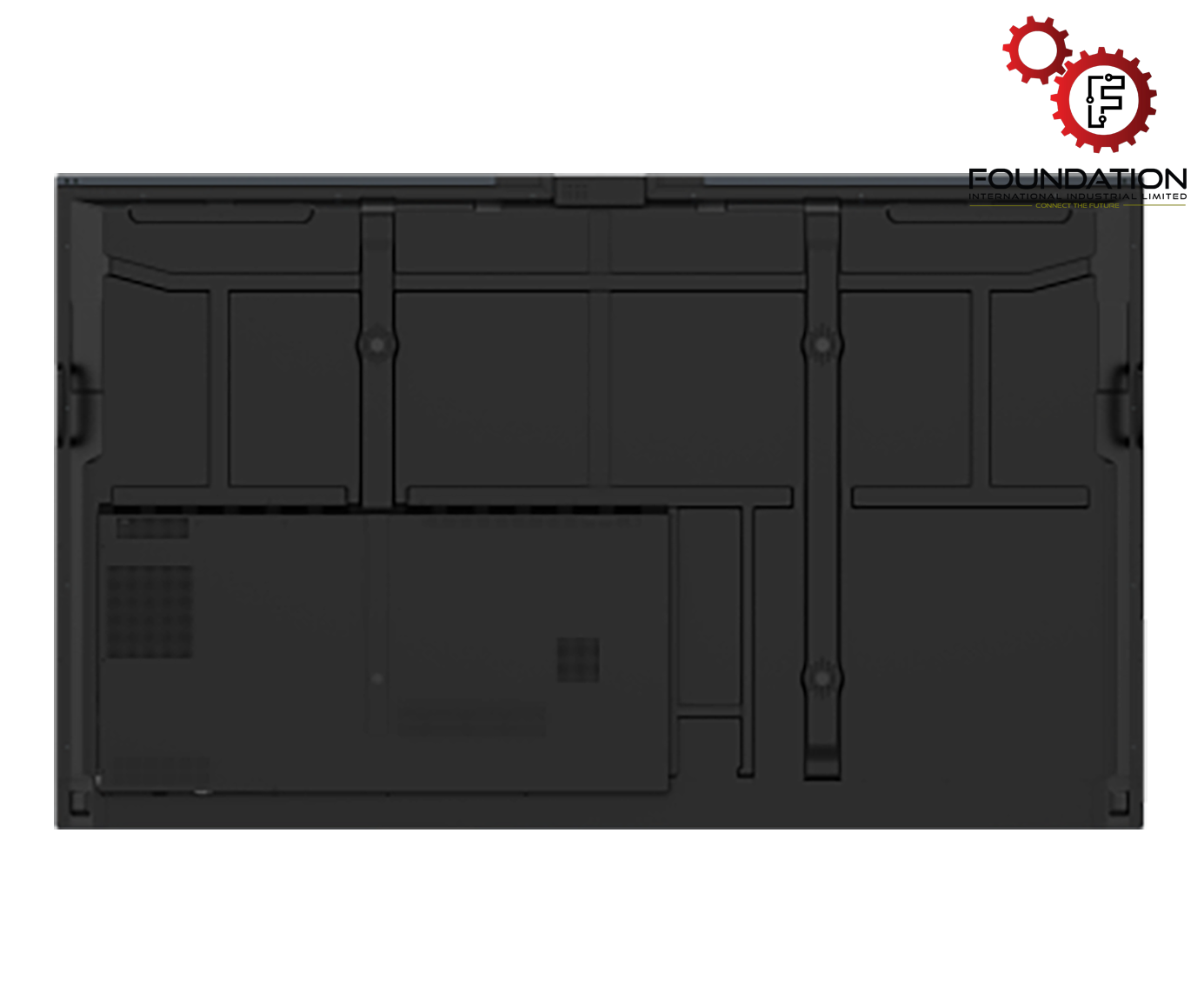

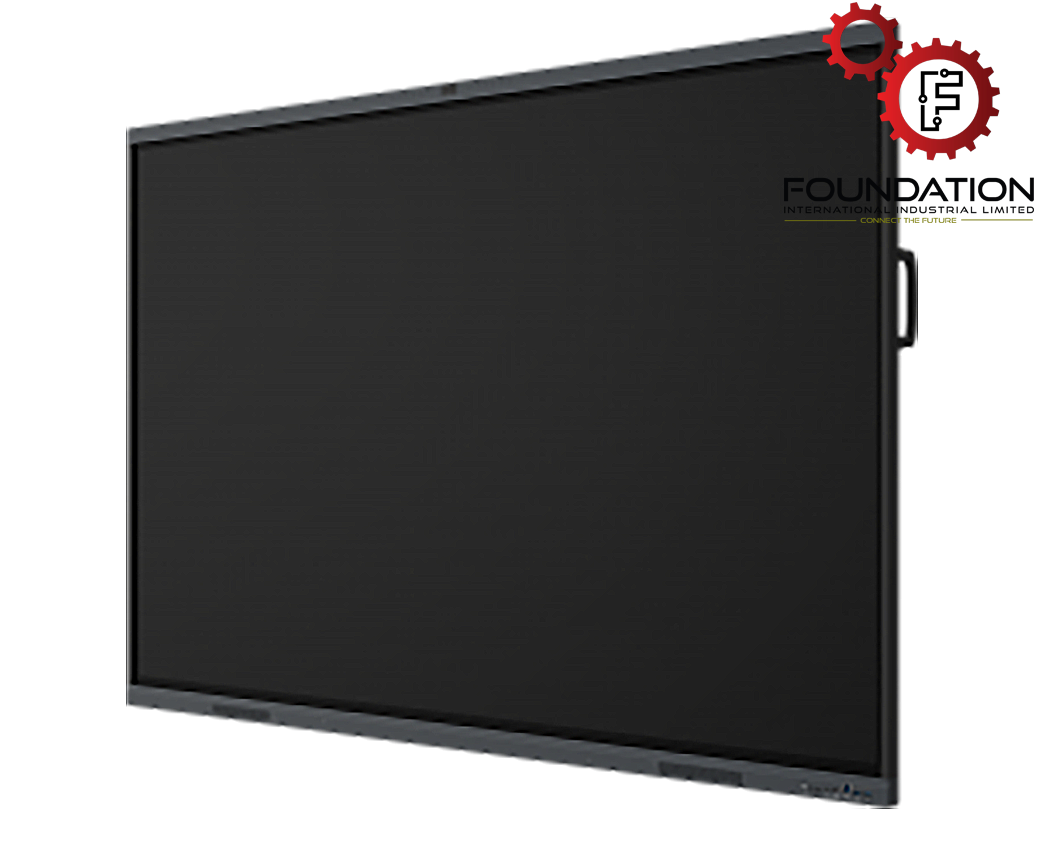

FIFP65A5 65 inch 4K Ultra HD display Infrared Interactive Flat Panel
FIFP65A5 4K Ultra HD display Infrared Interactive Flat Panel, support for full-channel 4K UI display.
2 front USB 3.0 ports + 2 onboard USB 3.0 ports, supporting switching with channels.
2 onboard full-featured Type-C ports (15W) *1; 1 front Type-C port supporting PD 65W
|
Specifications |
Model |
Parameter |
||
|---|---|---|---|---|
| Display |
Size |
65" |
||
|
Response Time |
8 ms |
|||
|
Aspect Ratio |
16: 9 |
|||
|
Display Area |
1428.48(H) × 803.52(V)mm |
|||
|
Resolution |
3840(H) × 2160(V) |
|||
|
Pixel Pitch |
0.372 × 0.372mm |
|||
|
Refreshing Frequency |
60Hz |
|||
|
Display Color |
1.07B (10bit) |
|||
|
NTSC |
72% |
|||
|
Contrast Ratio |
1100:1/1200:1/1300:1/5000:1 |
|||
|
Viewing Angle |
178°(H/V) |
|||
|
Back Light Unit |
DLED |
|||
|
Brightness(typ) |
350cd/m2 |
|||
|
Life Time |
≥30000 hrs |
|||
|
Audio |
Sound Channel |
2.0 |
||
|
Speaker Power |
2 × 16W |
|||
|
Camera |
Pixel |
50MP |
||
|
Quantity |
1 |
|||
|
Location |
Upper frame |
|||
| Function |
Supports sound source localization, Autoframing, 4K photography, camera image super-resolution, and multimodal recognition. |
|||
| Microphone |
Distance of a Pickup |
0~8m |
||
|
Quantity |
8 |
|||
| Function |
Support intelligent noise reduction, gain control, echo cancellation, reverberation suppression |
|||
|
Touch System |
Sensing Type |
Infrared touch |
||
|
System |
Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
|||
|
Touch Point |
10-point writing, 50-point touch (Android 32 points, Windows 50 points) |
|||
|
Min. Object Size |
2mm |
|||
|
Touch Tool |
Finger; passive IR pen |
|||
|
Response Time |
≤2.5ms |
|||
|
Accuracy |
±1mm |
|||
|
Writing Height |
≤1mm |
|||
|
Writing Display |
Single stylus pen with two colors |
|||
|
Interpolation Resolution |
32767(W) × 32767(D) |
|||
| Operating System |
Chip |
RK3576 |
||
|
System Version |
Android 14.0 |
|||
|
Frequency |
2.2GHZ |
|||
|
CPU |
A72*4+A53*4 |
|||
|
GPU |
G52 MC3 |
|||
|
RAM |
8G |
|||
|
ROM |
128G |
|||
| OSD |
English, Simplified Chinese, Traditional Chinese |
|||
| Bluetooth |
Version |
5.2 |
||
|
Operation Frequency |
2.4GHz |
|||
|
Operation Distance |
0~10m |
|||
|
Remark |
Function achieved via wireless module SI07B |
|||
| Wi-Fi |
Version |
802.11ac/b/g/n/a/ax |
||
|
Operation Frequency |
2.4GHz/5GHz |
|||
|
Operation Distance |
0~10m |
|||
|
Remark |
Function achieved via wireless module SI07B |
|||
|
Front interface |
USB 3.0 |
2 |
||
|
HDMI IN |
1 | |||
|
touch USB |
1 |
|||
|
TYPE-C |
1 |
|||
|
Keys/light sensor/ remote control receiver |
1 |
|||
| Onboard interface |
HDMI IN |
2 |
||
|
HDMI OUT |
1 |
|||
|
DP |
1 | |||
|
USB 3.0 |
2 |
|||
|
USB 2.0 |
1 |
|||
|
TOUCH USB |
1 |
|||
|
VGA IN |
1 |
|||
|
AUDIO IN |
1 |
|||
|
AUDIO OUT |
1 |
|||
|
RS232 |
1 |
|||
|
RJ45 IN |
1(speed: 10/100/1000Mbps) |
|||
|
RJ45 OUT |
1(speed: 10/100/1000Mbps) |
|||
|
SPDIF |
1 | |||
|
TYPE-C |
1 |
|||
|
TF |
1 |
|||
|
Power |
Power Requirements |
100-240V~50/60Hz 4A |
||
|
Max Power |
400W |
|||
|
Standby Power |
≤0.5W |
|||
| Physical Specifications |
Dimension(L × W × T) |
1488.4×915.3×99.2mm |
||
|
Dimension(package) L × T × H |
1630×220×1050mm |
|||
|
Thickness of Machine (including bracket) |
129.2mm（WIB9060G） |
|||
|
VESA |
600×400mm |
|||
|
Wall-hanging Screw Spec |
M8 × 25mm |
|||
|
Net Weight |
32.95+/-1Kg |
|||
|
Gross Weight |
42.95+/-1Kg |
|||
|
Accessories |
Power Cord |
×1 |
||
|
Stylus Pen |
×2 |
|||
|
Wall Mount |
×1 |
|||
|
Quick Start |
×1 | |||
| Optional Module |
OPS Module Dimension (L × W × H) |
OPS (120mm*180mm*30mm)European standard |
||
| Standard Module |
Wireless Module |
SI07B（Wi-Fi 6.0） |
||
| Environmental Conditions |
Operation Temperature |
0℃～40℃ |
||
|
Operation Humidity |
10%~90%RH |
|||
|
Storage Temperature |
-20℃~60℃ |
|||
|
Storage Humidity |
10%~90%RH |
|||
|
Altitude |
＜5000m |
|||
