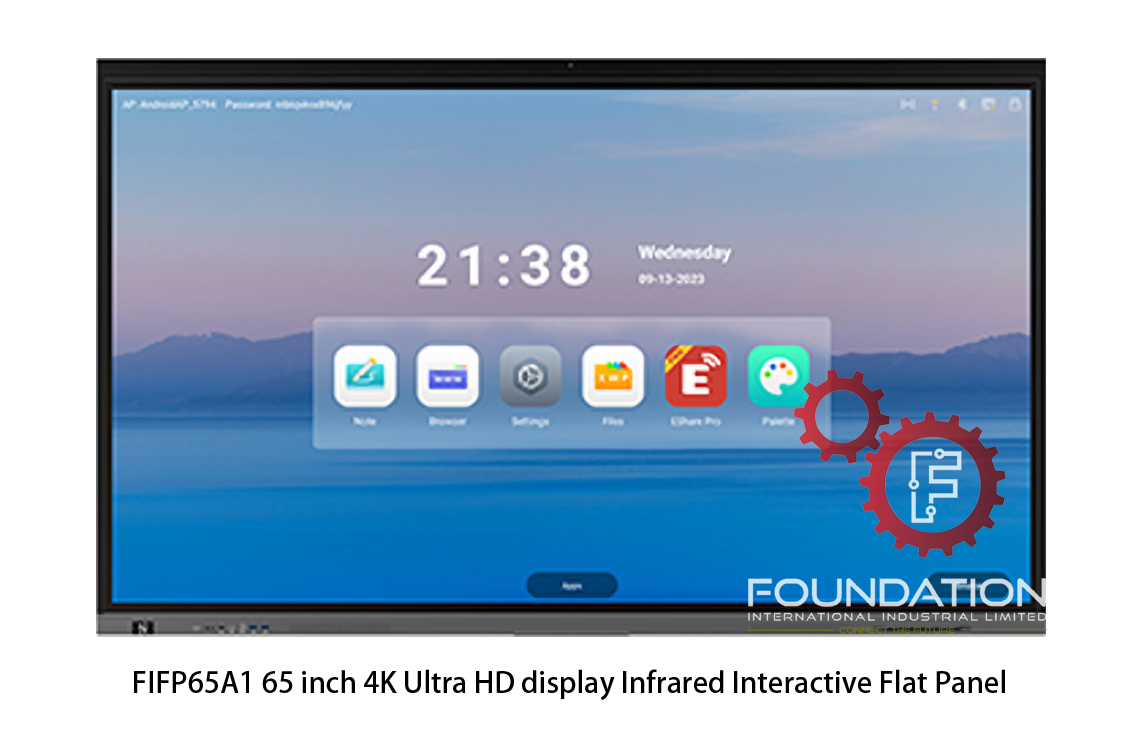

FIFP65A1 65 inch 4K Ultra HD display Infrared Interactive Flat Panel
FIFP65A1 65 inch 4K Ultra HD display Infrared Interactive Flat Panel.
48MP wide-angle autofocus, sound source positioning, gesture switching image AI mode
Support 2.2 channel, front treble & back subwoofer
Support Wi-Fi 6, dual-band 2.4G/5G, AP+STA working mode
NFC lock screen + unlock, pen pick-up detection
|
Specification |
Type |
Parameter |
||
|---|---|---|---|---|
| Display |
Size |
65“ |
||
|
Response Time |
8 ms | |||
|
Aspect Ratio |
16:9 | |||
| Display Area | 1429（H）× 804 （V）mm | |||
| Resolution | 3840（H）× 2160（V） | |||
| Pixel Pitch | 0.372×0.372mm | |||
| Refreshing Frequency | 60Hz | |||
| Display Color | 1.07B (10bit) | |||
| NTSC | 72% | |||
| Contrast Ratio | 1100:1/1200:1/1300:1/5000:1 | |||
| Viewing Angle | 178°(H/V) | |||
| Back Light Unit | DLED | |||
| Brightness (Typ) | 425cd/m2 | |||
| Life Time | ≥30000 hrs | |||
|
Audio |
Sound Channel |
2.2 | ||
|
Speaker Power |
2×16W(treble)+2×16W(bass) |
|||
| Camera | Pixel | 48MP | ||
|
Quantity |
1 | |||
| Location |
Upper frame |
|||
|
Viewing Angle |
D=89° H=75° V=50° |
|||
| Function |
Support AI mode gesture switching image, sound source localization, and voice enhancement |
|||
| Microphone |
Distance of a Pickup |
0~8m |
||
|
Quantity |
8 |
|||
|
Pickup Angle |
0°~180° |
|||
| Function | Support echo cancellation, intelligent noise reduction, reverberation suppression | |||
|
Touch System |
Sensing Type |
Infrared Touch | ||
|
Supported System |
Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome | |||
|
Android Touch Point |
20 points touch | |||
|
OPS Touch Point |
40 points touch |
|||
|
Min. Object Size |
1.5mm (over 90% area) |
|||
|
Touch Tool |
Opaque objects(Finger, stylus pen, etc.) |
|||
|
Response Time |
≤2.0ms | |||
|
Accuracy |
±0.5mm (over 90% area) |
|||
|
Writing Height |
≤2mm | |||
|
Writing Display |
Single stylus pen with two colors |
|||
|
Interpolation Resolution |
32767 (W) × 32767(D) | |||
|
Operating System |
Chip |
RK3588 |
||
| System version | Android 13.0 | |||
|
Frequency |
2.4GHZ | |||
| CPU |
Quad-core A76 + Quad-core A55 |
|||
| GPU |
ARM Mali-G610 MC4 |
|||
| RAM | 8GB | |||
| ROM | 64GB | |||
| OSD |
Simplified Chinese, Traditional Chinese, Japanese, English, Korean, Vietnamese, Thai, Russian, Swedish, Portuguese, Polish, Dutch, Italian, French, Indonesian, Finnish, Spanish, German, Danish, Czech, and Arabic, 21 languages in total |
|||
|
Bluetooth |
Version |
5.2 | ||
| Operation Frequency | 2.4GHz | |||
| Operation Distance | 0~10m | |||
| Remark |
With wireless module |
|||
| Wi-Fi |
Version |
IEEE802.11a/b/g/n/ac/ax |
||
| Operation Frequency | 2.4GHz/5GHz | |||
| Operation Distance | 0~10m | |||
| Remark |
With wireless module |
|||
|
Power |
Power Requirements |
100-240V~, max 90-264V~50/60Hz 2.8A | ||
| Max Power | 350W | |||
| Standby Power | ≤0.5W | |||
| Physical Specifications |
Dimension(L × W × T) |
1483.4×916.4×114.8mm |
||
|
Dimension(package) L × T × H |
1630×220×1050mm |
|||
|
Thickness of Machine (including bracket)
|
144.8mm（XD2163） |
|||
| VESA | 500×400mm | |||
|
Wall-hanging Screw Spec |
M8×20mm | |||
|
Net Weight |
41±1KG |
|||
|
Gross Weight |
48.9±1KG |
|||
|
Accessories |
Power Cord |
×1 | ||
|
Stylus Pen |
×1 | |||
| Wall Mount | ×1 | |||
|
Quick Start |
×1 | |||
| Environmental Conditions |
Operation Temperature |
0℃~40℃ | ||
|
Operation Humidity |
10%~90%RH | |||
|
Storage Temperature |
-20℃~60℃ | |||
|
Storage Humidity |
10%~90%RH | |||
|
Altitude |
<5000m | |||
| Standard Module | Wireless Wi-Fi model |
SI07B |
||
|
Optional Module |
OPS Module Dimension |
OPS size(120mm*180mm*30mm) OPS size(195mm*180mm*30mm) OPS size(195mm*180mm*42mm) |
||
