- Sku:
- Vendor: HIKVISION
HIKVISION DS-D5B86RB/FP Performance G2 Series 86" 4K Interactive Digital Board 電子互動白板- 學校及商用場合適用
HK$33,790.00
HIKVISION DS-D5B86RB/FP Performance G2 Series 86" 4K Interactive Digital Board 電子互動白板- 學校及商用場合適用
8GB RAM + 128GB Storage; Android 14 (EDLA Certified), 4K, 400cd/m²/ Built-in 20Wx2 + 25 W loudspeaker/ IR Touch (50 Points)/ Built-in 8MP camera with Ai funnction and 8-array Mic
| Product Model | |||
| Product Model | DS-D5B86RB/FP | ||
| Display | |||
| Screen Size | 86 inch | ||
| Backlight | DLED | ||
| Pixel Pitch | 0.164 (H) × 0.493 (V) mm | ||
| Resolution | 3840 × 2160 @60 Hz | ||
| Brightness | 450 cd/m² (Max.) | ||
| 400 cd/m² (Typ.) | |||
| Color Depth | 10 bit | ||
| Display Color | 1.07 G | ||
| Response Time | 5 ms | ||
| Panel Type | VA | ||
| Contrast Ratio | 5000:1 (Static) | ||
| 30,000:1 (Dynamic) | |||
| Color Gamut | 72% NTSC (CIE1931) (Typ.) | ||
| Refresh Rate | 60 Hz | ||
| Viewing Angle | 178° (H)/178° (V) | ||
| Aspect Ratio | 16:9 | ||
| Surface Hardness | 9H (Pencil) | ||
| 7 (Mohs) | |||
| Surface Glass | Anti-Glare | Glass | |
| Surface Haze | 25% Haze | ||
| Glass Bonding Method | Zero Lamination | ||
| Display Area | 1895.04 (H) × 1065.96 | (V) | |
| Working Duration | 7 × 16 H | ||
| Transmittance | 88% ± 3 | ||
| Lifespan | 50,000 hours | ||
| Touch | |||
| Type | Infrared Touch Screen | ||
| Touch Point | Up to 50-point multi-touch | ||
| Touch Response Time | ≤ 2 ms | ||
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) | ||
| Touch Precision | ± 0.5 mm (≥ 90% touching area) | ||
| Touch Resolution | 32768 × 32768 | ||
| Built-in System | |||

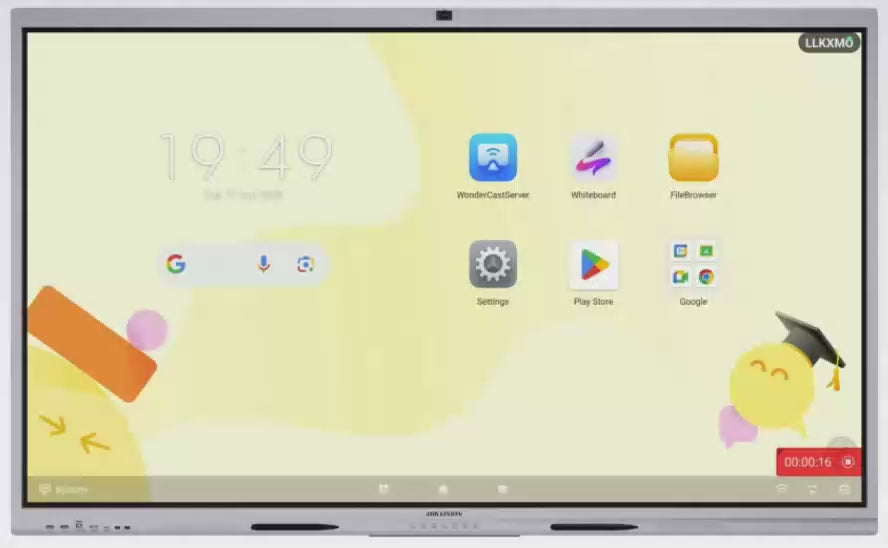

| Operation System | Android 14.0 | ||
| Memory | 8 GB | ||
| Built-in Storage | 128 GB | ||
| Processor | Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz） | ||
| GPU | Mali-G52 MC3 | ||
| HDCP Version | 2.3 & 2.2 & 1.4 | ||
| Camera | |||
| Pixel | Pixel 48 MP for Photos & 8 MP for Video | ||
| Camera Function | Support intelligent switching between Android system, OPS, and PC. | |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) | |
| Distortion | ≤ 2.5% | |
| Camera Resolution Ratio | Up to 4K | |
| Microphone | ||
| Specification | Omni-directional 8-array layout | |
| Mic Function | Echo reduction and smart noise-cancellation | |
| Voice Distance | 12 m | |
| Sampling Rate | 48 K | |
| Mic Depth | 16 bit | |
| Internal Function | ||
| Loudspeaker | Built-in 2 × 20 W + 25 W loudspeaker; | |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 | |

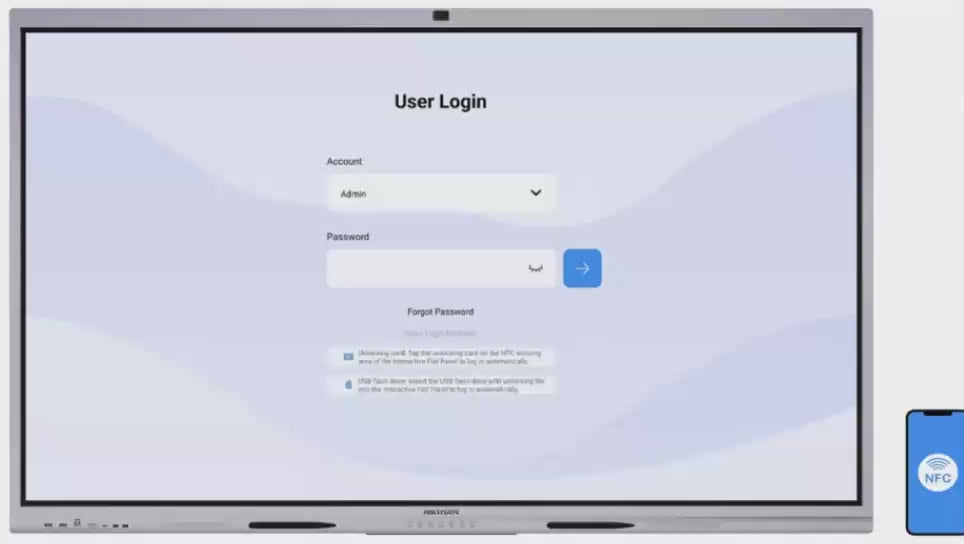

| NFC | Support card reader | |
| 13.56 MHz, (ISO 14443A/ ISO 14443B) | ||
| Light Sensor | Yes | |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic | |
| purple edge removal, automatic defogging; support shadow correction. | ||
| Support dereverberation, adaptive noise reduction, adaptive non-stationary noise | ||
| Audio Processing Technology | reduction, adaptive echo cancellation, automatic gain control, automatic electrical | |
| level control, sound source localization, speech dynamic detection, digital beam | ||
| forming, speech detection. | ||
| Interface | ||
| HDMI 2.0 × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.2 & 1.4;HDMI1 Support | ||
| CEC&ARC protocol） | ||
| Video & Audio Input | VGA × 1（Rear） | |
| Audio × 1（Rear） | ||
| HDMI 2.0 × 1（Rear） | ||
| Video & audio output | Audio × 1（Rear） | |
| SPDIF × 1（Rear） | ||

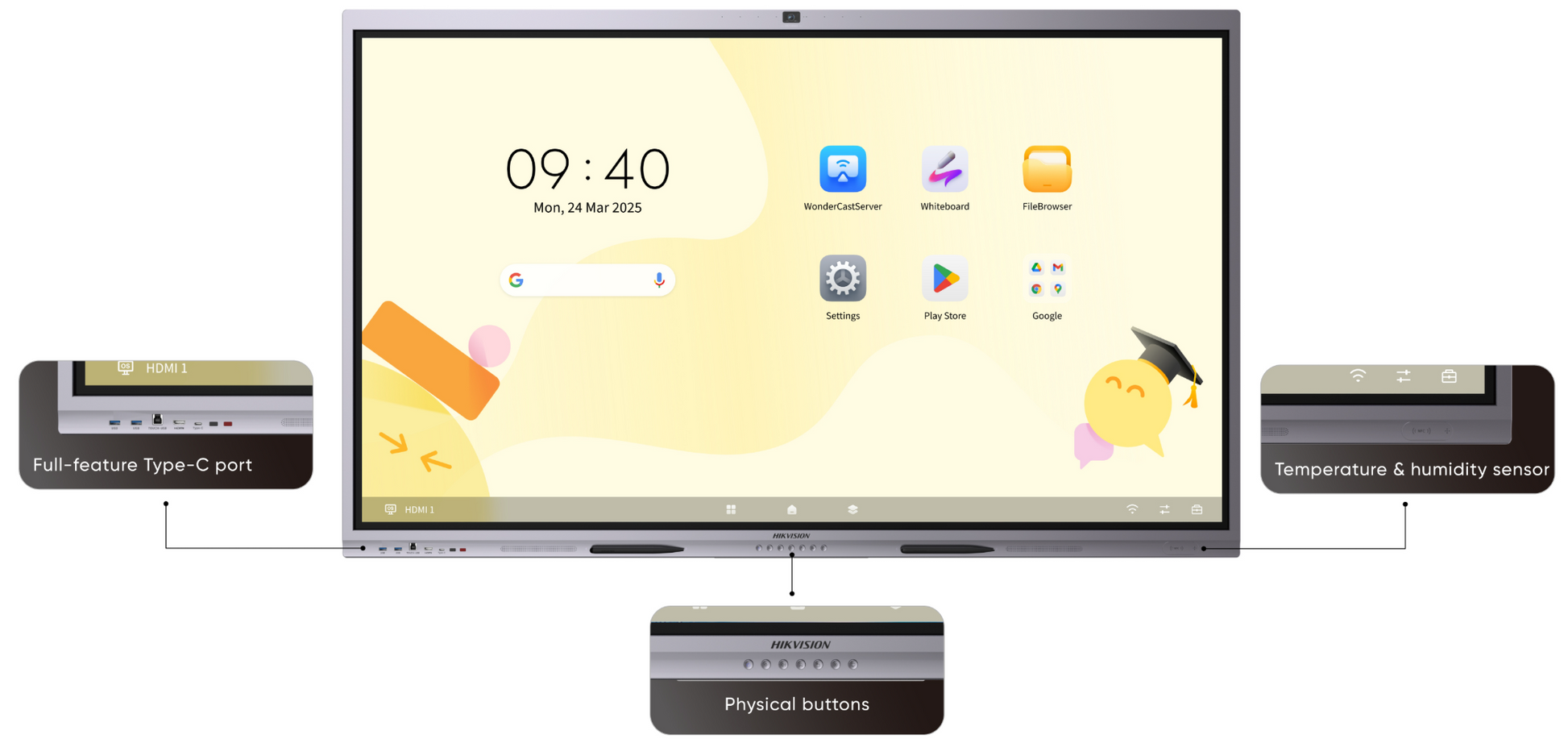

| TOUCH-USB 3.0 × 1（Front × 1） | ||
| Control interface | TOUCH-USB 2.0 × 2（Rear × 2） | |
| RS232 × 1（Rear） | ||
| LAN (1000 Mbps) × 2（Rear） | ||
| Network Interface | Wi-Fi AP & Station, 2.4 G/5 G | |
| Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax | 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication | |
| protocols WEP, WPA, WPA2, PSK and 802.1X EAP | ||
| USB 3.0 × 3（Front × 2; Rear × 1） | |||||
| USB 2.0 × 2（Rear × 2） | |||||
| Data Transmission Interface | Type-C × 1 (Front × 1：Support USB 3.0, 65 W charging functions; support DP IN 1.4) | ||||
| Type-C × 1 (Rear × 1：Support USB 2.0, 65 W charging functions; support DP IN 1.4) | |||||
| Power | |||||
| Power Supply | 100 to 240 VAC, 50/60 Hz | ||||
| Standby Consumption | ≤ 0.5 W | ||||
| Average Consumption | < 270 W | ||||
| Working Environment | |||||
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||||
| Working Humidity | 10%~90% RH | ||||
| General | |||||
| VESA | 800 mm × 600 mm (4 × M8-25 mm) | ||||
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB | ||||
| cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth. | |||||
| Package Dimensions (W × H × D) | 2157 × 1345 × 223 mm | ||||
| Net Weight | 59.8 ± 0.5 kg | ||||
| Gross Weight | 79.9 ± 0.5 kg | ||||
| Product Dimensions （With Wall | |||||
| Attachment） | 1957 | × 1173.7 × 110.6 mm | |||
| Product Dimensions （Without | |||||
| Wall Attachment） | 1957 | × 1173.7 × 83.2 mm | |||
