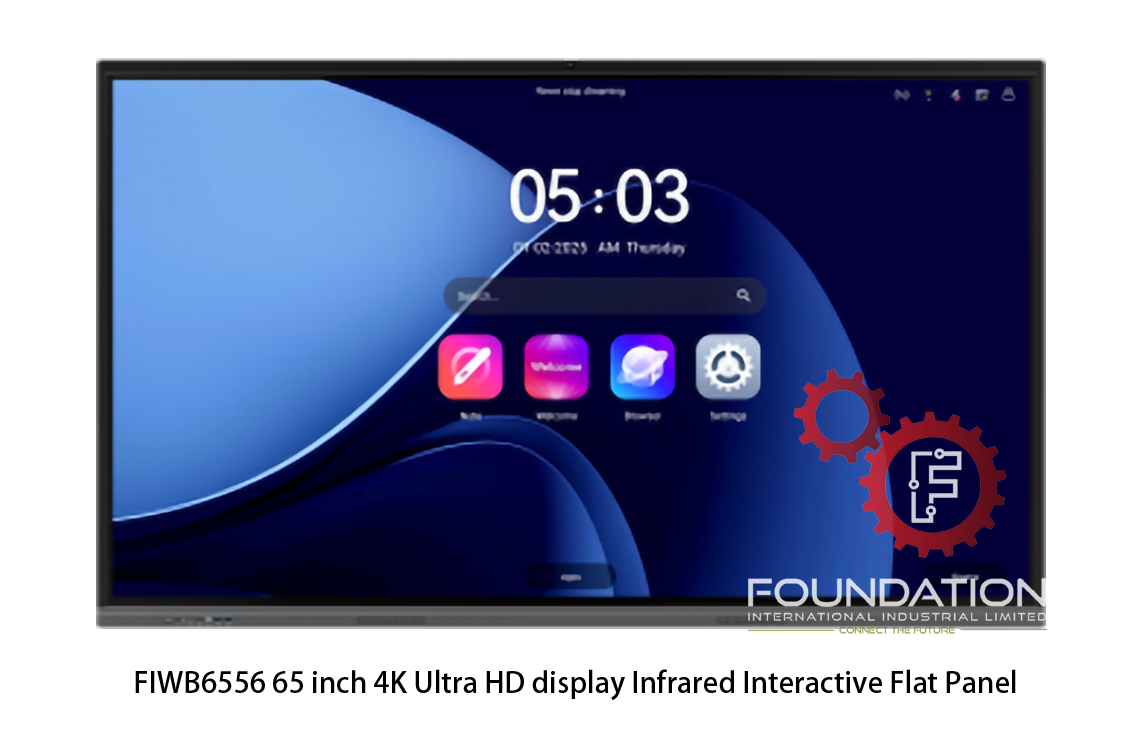

FIWB6556 65 inch 4K Ultra HD display Infrared Interactive Flat Panel
FIWB6556 65 inch 4K Ultra HD display Infrared Interactive Flat Panel
4K Ultra HD display, support for full-channel 4K UI display.
HD camera, 8-array microphone.
Intelligent wake-up for HDMII/VGA/RS232 channels & network signal input in standby mode.
Support for one wired network, both Android and OPS system are 1000Mbps
|
Specifications |
Model |
Parameter |
||
|---|---|---|---|---|
| Display |
Size |
65" |
||
|
Response Time |
8 ms |
|||
|
Aspect Ratio |
16: 9 |
|||
|
Display Area |
1429（H）×804 （V）mm |
|||
|
Resolution |
3840(H) × 2160(V) |
|||
|
Pixel Pitch |
0.372 × 0.372mm |
|||
|
Refreshing Frequency |
60Hz |
|||
|
Display Color |
1.07B (10bit) |
|||
|
NTSC |
72% |
|||
|
Contrast Ratio |
1100:1/1200:1/1300:1/5000:1 |
|||
|
Viewing Angle |
178°(H/V) |
|||
|
Back Light Unit |
DLED |
|||
|
Brightness(typ) |
300cd/m2 |
|||
|
Life Time |
≥30000 hrs |
|||
|
Audio |
Sound Channel |
2.0 |
||
|
Speaker Power |
2 × 16W |
|||
|
Camera |
Pixel |
13MP |
||
|
Quantity |
1 |
|||
|
Location |
Upper frame |
|||
|
Viewing Angle |
D=89° H=75° V=50° |
|||
| Function |
Support for auto-focus, auto white balance, and 3D noise reduction |
|||
| Microphone |
Distance of a Pickup |
0~8m |
||
|
Quantity |
8 |
|||
|
Pickup Angle |
0°~180° |
|||
| Function |
Support echo cancellation, background noise suppression, gain compensation |
|||
|
Touch System |
Sensing Type |
Infrared touch |
||
|
System |
Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
|||
|
Touch Point |
20 points touch |
|||
|
Min. Object Size |
2mm |
|||
|
Touch Tool |
Finger; passive IR pen |
|||
|
Response Time |
≤5ms |
|||
|
Accuracy |
±1mm |
|||
|
Writing Height |
≤3mm |
|||
|
Writing Display |
Single stylus pen with two colors |
|||
|
Interpolation Resolution |
32767(W) × 32767(D) |
|||
| Operating System |
Chip |
C.MT9679 |
||
|
System Version |
Android 14.0 |
|||
|
Frequency |
1.2GHZ |
|||
|
CPU |
Quad-Core A73 |
|||
|
GPU |
G52 |
|||
|
RAM |
4G |
|||
|
ROM |
32G |
|||
| OSD |
English, Simplified Chinese, Traditional Chinese |
|||
| Bluetooth |
Version |
5.2 |
||
|
Operation Frequency |
2.4GHz&5GHz |
|||
|
Operation Distance |
0~10m |
|||
|
Remark |
Built-in Bluetooth |
|||
| Wi-Fi |
Version |
802.11ac/b/g/n/ax |
||
|
Operation Frequency |
2.4GHz/5GHz |
|||
|
Operation Distance |
0~10m |
|||
|
Remark |
Built-in Wi-Fi |
|||
|
Power |
Power Requirements |
Rated 100-240V～, max 90-264V~50/60Hz 2.8A |
||
|
Max Power |
250W |
|||
|
Standby Power |
≤0.5W |
|||
| Physical Specifications |
Dimension(L × W × T) |
1488.2×907.4×85.2mm |
||
|
Dimension(package) L × T × H |
1630×220×1050mm |
|||
|
Thickness of Machine (including bracket) |
115.2mm |
|||
|
VESA |
600×400mm |
|||
|
Wall-hanging Screw Spec |
M8 × 20mm |
|||
|
Net Weight |
TBD |
|||
|
Gross Weight |
TBD |
|||
|
Accessories |
Power Cord |
×1 |
||
|
Stylus Pen |
×1 |
|||
|
Wall Mount |
×1 |
|||
|
Quick Start |
×1 | |||
| Optional Module |
OPS Module Dimension (L × W × H) |
OPS (120mm*180mm*30mm) OPS (195mm*180mm*30mm) |
||
| Environmental Conditions |
Operation Temperature |
0℃～40℃ |
||
|
Operation Humidity |
10%~90%RH |
|||
|
Storage Temperature |
-20℃~60℃ |
|||
|
Storage Humidity |
10%~90%RH |
|||
|
Altitude |
＜5000m |
|||
