- Sku:
- Vendor: FOUNDATION INTERNATIONAL INDUSTRIAL LIMITED

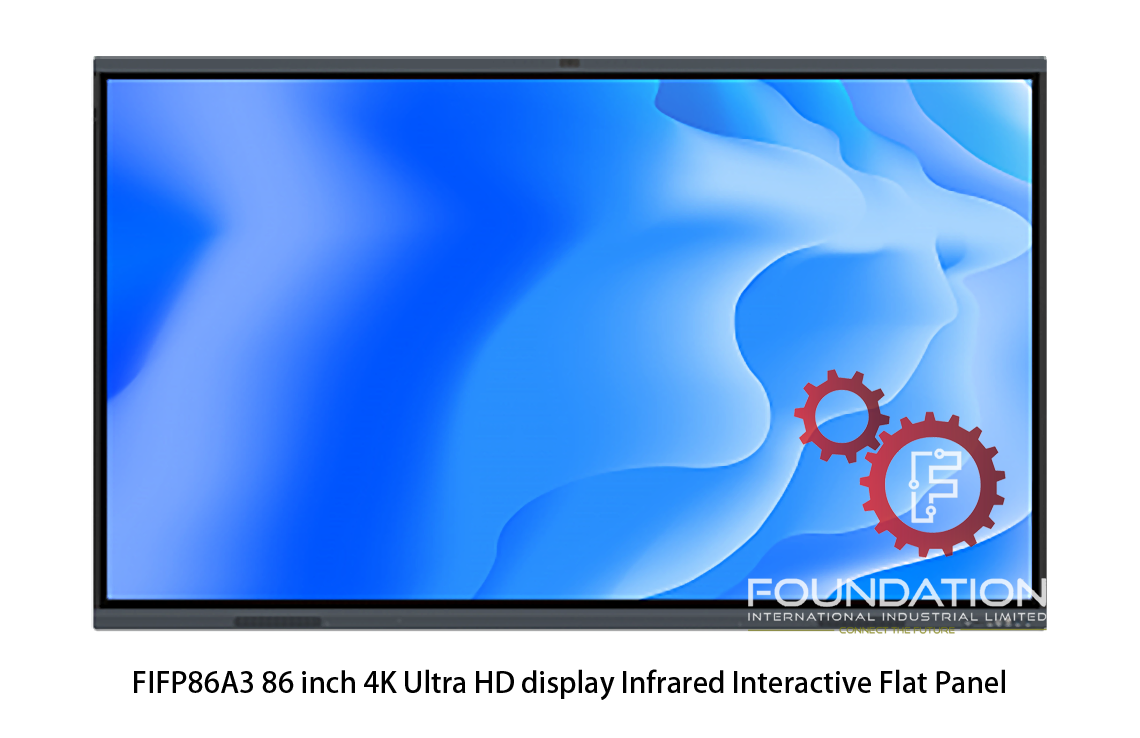

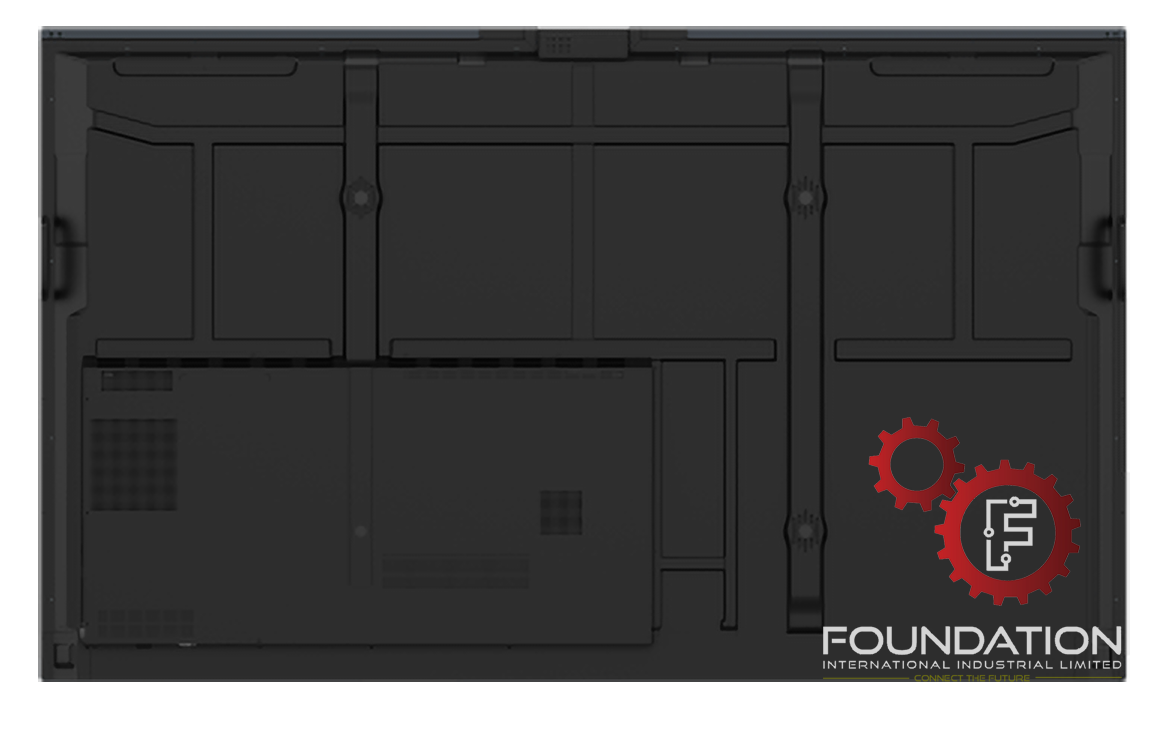

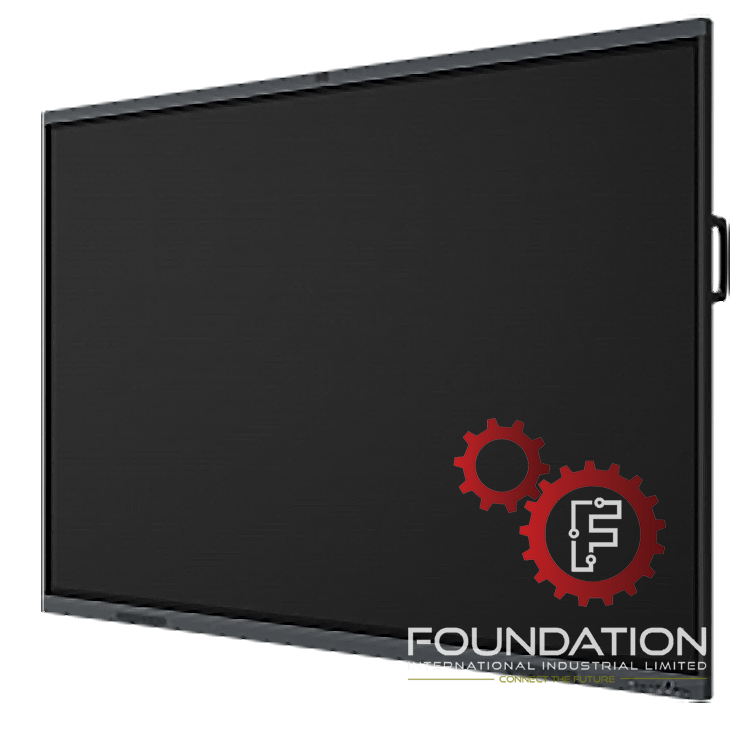

FIFP86A3 86 inch 4K Ultra HD display Infrared Interactive Flat Panel
FIFP86A3 86 inch 4K Ultra HD display Infrared Interactive Flat Panel
4K UHD display in all source channels.
DC backlight technology ensures flicker-free photography and video recording.
Low blue light technology in hardware minimizes harmful blue light exposure.
|
Specification |
Model |
Parameter |
||
|---|---|---|---|---|
| Display |
Size |
86" |
||
|
Panel Type |
VA |
|||
|
Response Time |
8ms |
|||
|
Aspect Ratio |
16: 9 |
|||
|
Display Area |
1895.04(H) × 1065.96(V)mm |
|||
|
Resolution |
3840(H) × 2160(V) |
|||
|
Pixel Pitch |
0.4935 × 0.4935mm |
|||
|
Refreshing Frequency |
60Hz |
|||
|
Display Colors |
1.07B (10bit) |
|||
|
NTSC |
90% |
|||
|
Contrast Ratio |
5000:1 |
|||
|
Viewing Angle |
178°(H/V) |
|||
|
Back Light Unit |
DLED |
|||
|
Brightness(typ) |
400cd/m2 |
|||
|
Operation Time |
7 days × 16 hours |
|||
|
Life Time |
≥30000 hrs |
|||
|
Audio |
Sound Channel |
2.2 |
||
|
Sound Pressure Level |
85dB |
|||
|
Speaker Power |
2 × 8W + 2 × 18W |
|||
|
Camera |
Pixel |
48MP |
||
|
Quantity |
1 |
|||
|
Location |
Built in the middle of the upper frame |
|||
| Microphone |
Distance of a Pickup |
0~8m |
||
|
Quantity |
8 |
|||
|
Touch System |
Sensing Type |
Infrared touch |
||
|
Supported System |
Windows10/Windows8/Windows7/Android/ Linux/Mac OS X/Chrome |
|||
|
Touch Point |
50 points |
|||
|
Min. Object Size |
2mm |
|||
|
Touch Tool |
Passive infrared pen; active infrared pen |
|||
|
Response Time |
≤2.5ms |
|||
|
Accuracy |
±1mm |
|||
|
Writing Height |
1mm |
|||
|
Interpolation Resolution |
32768(W) × 32768(D) |
|||
| Operating System |
System Version |
Android 13.0 |
||
|
CPU |
Quad-core A76 + quad-core A55 |
|||
|
GPU |
Mali-G610 MP4 |
|||
|
RAM |
16G |
|||
|
ROM |
256G |
|||
|
Power |
Power Requirements |
100-240V~50/60Hz 6.5A |
||
|
Max Power |
650W |
|||
|
Standby Power |
≤0.5W |
|||
| Physical Specifications |
Dimension(L × W × T) |
1957.1 × 1178.6 × 98.5mm |
||
|
Dimension(package) L × T × H |
2110 × 225 × 1304mm |
|||
|
Thickness of Machine (including bracket) |
128.5mm(WIB9060H) |
|||
|
VESA |
800 × 600mm |
|||
|
Wall-hanging Screw Spec |
M8 × 25mm |
|||
|
Net Weight |
64.38kg |
|||
|
Gross Weight |
77.60kg |
|||
|
Accessories |
Power Cord |
×1 |
||
|
Stylus Pen |
×2 |
|||
|
Wall Mount |
×1 |
|||
| Optional Module |
PC Module |
OPS72A |
||
| Standard Module |
Wireless Module |
SI07B |
||
| Environmental Conditions |
Operation Temperature |
0℃～40℃ |
||
|
Operation Humidity |
10%~90%RH |
|||
|
Storage Temperature |
-20℃~60℃ |
|||
|
Storage Humidity |
10%~90%RH |
|||
|
Altitude |
＜5000m |
|||
