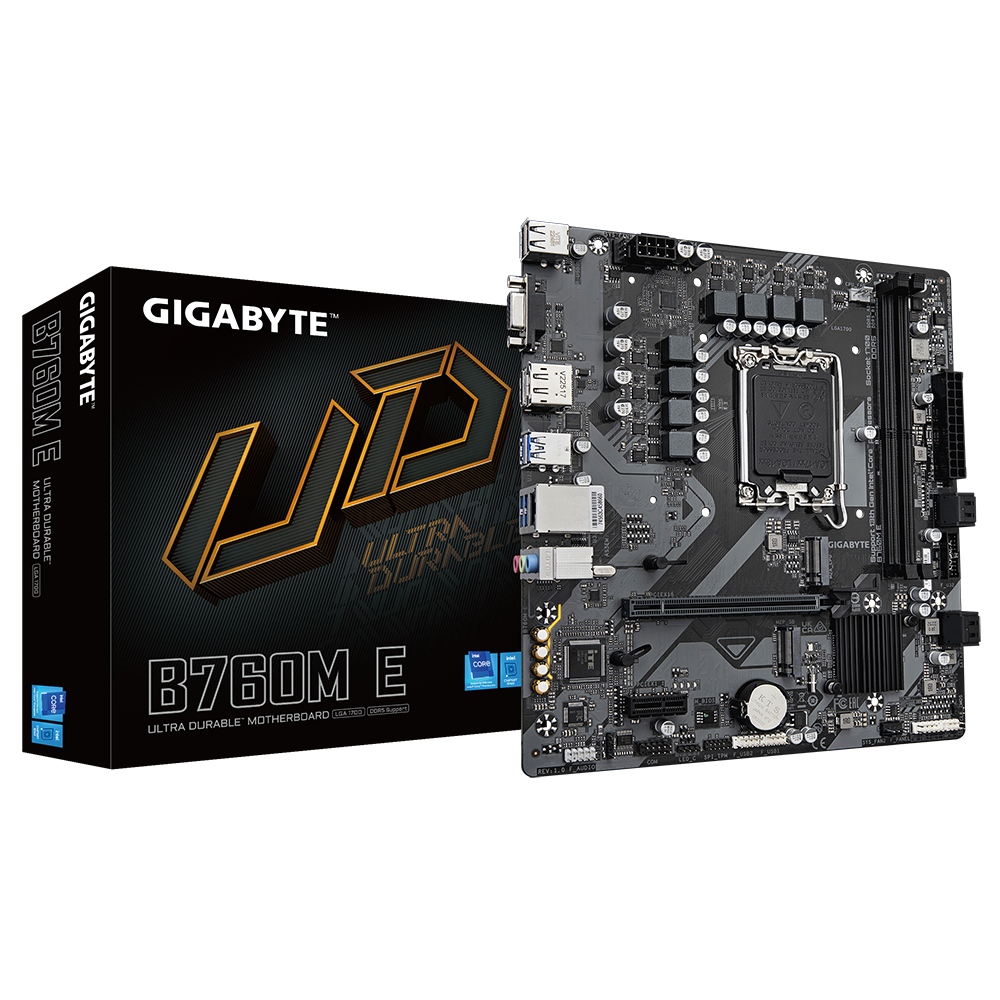

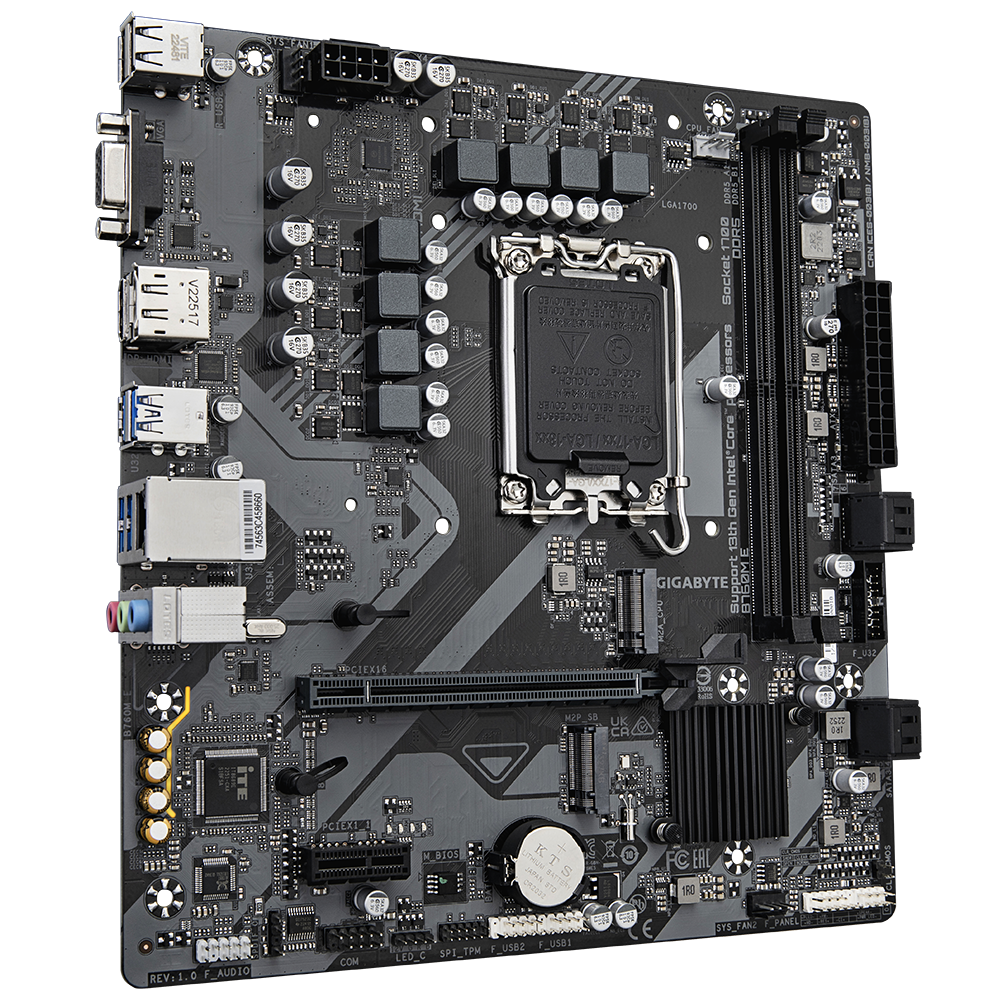

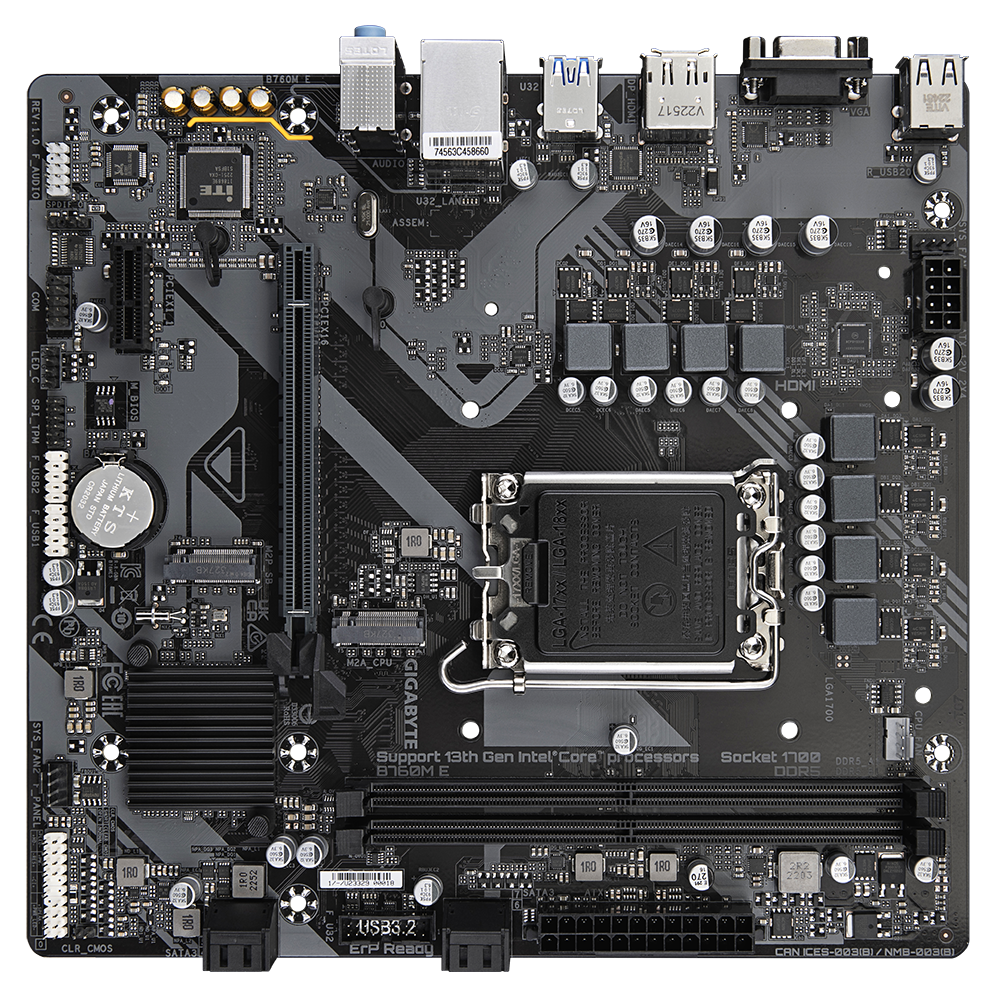

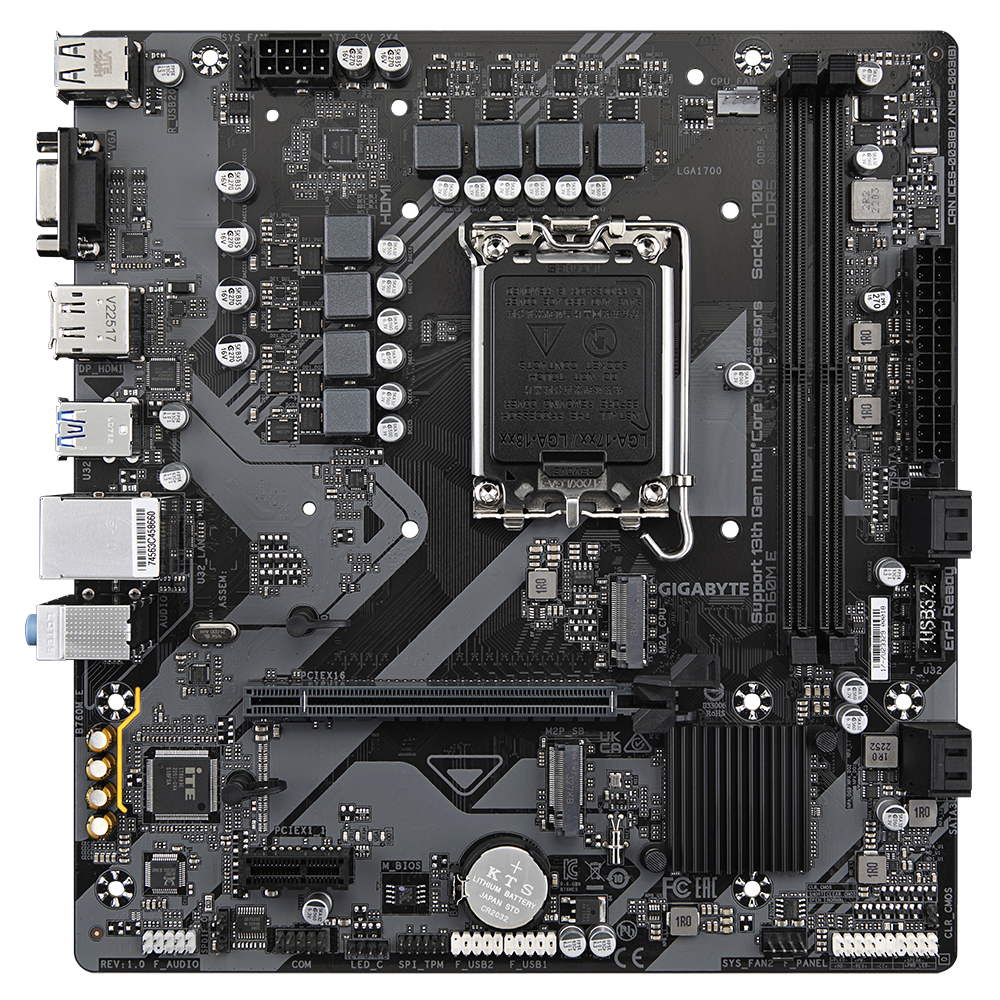

GIGABYTE Ultra Durable B760 MATX GA-B760M E Motherboard

B760M E
Hybrid 6+1+1 Phases Digital VRM Solution
2*DIMMs XMP Memory Module Support
2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN

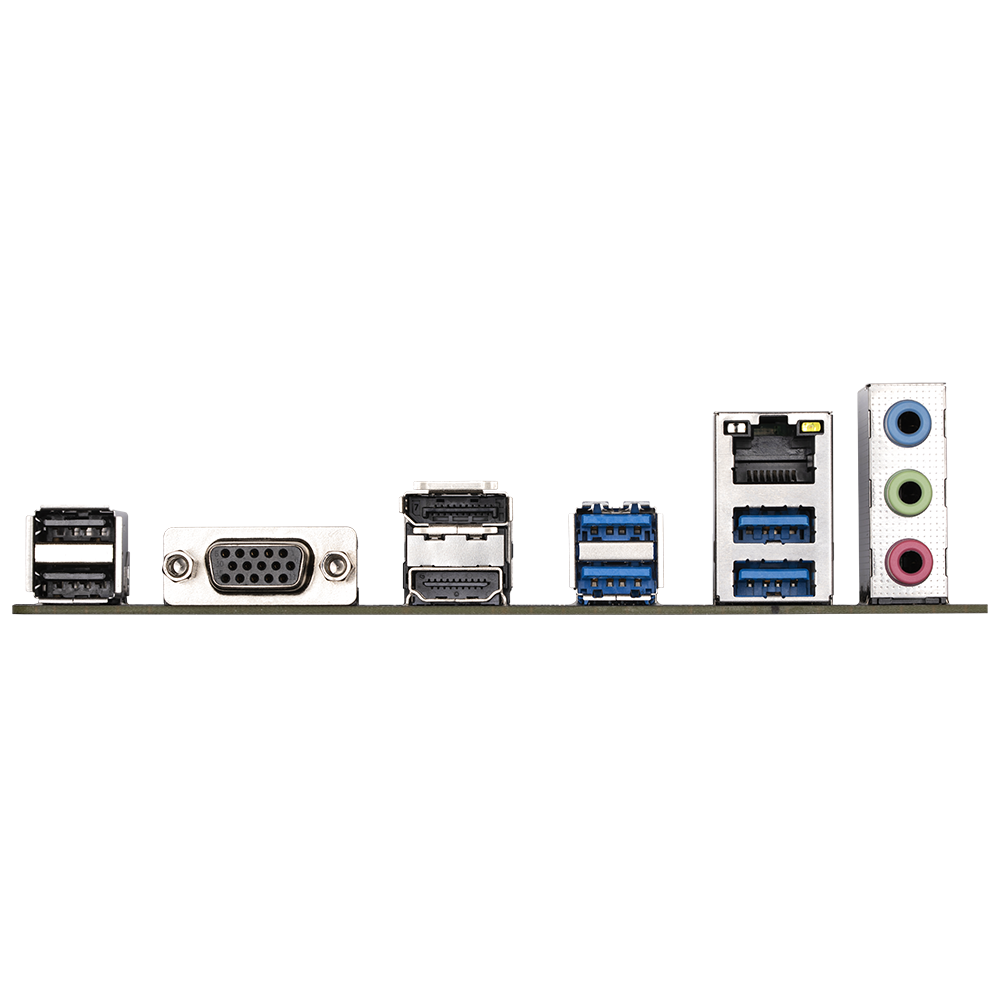

Extended Connectivity：Display Port, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Intel B760

支援2*DDR5 7200(O.C) ~ 4000 MT/s記憶體模組

- Sound

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

- Connectivity

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

- Expansion Slot

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

- Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

- USB

Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

- Motherboard Connector

- PCB Spec

Micro ATX Form Factor; 23.0cm x 21.5cm

- Warranty

3 Years

Official website: B760M E (Rev. 1.0) - GIGABYTE Global
