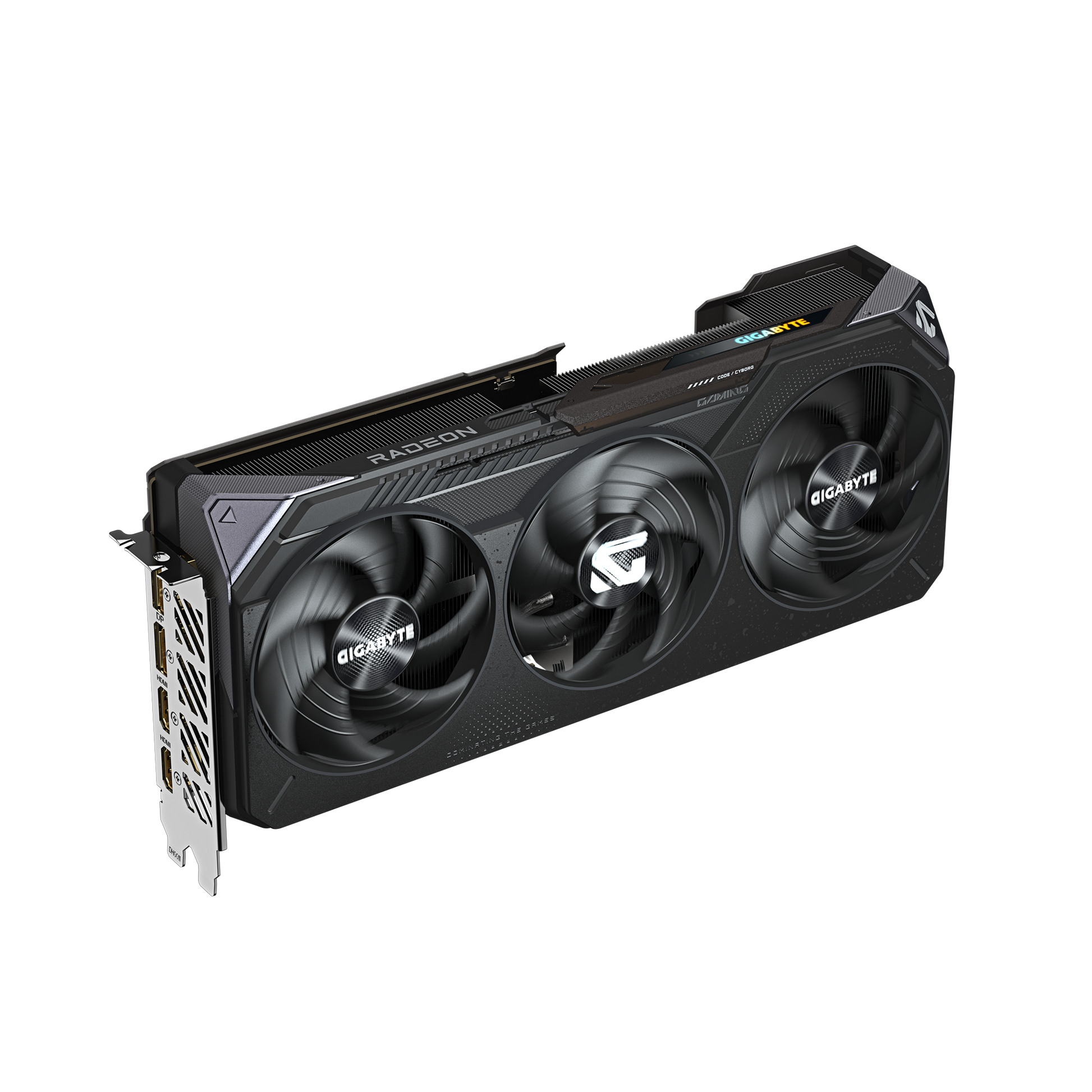

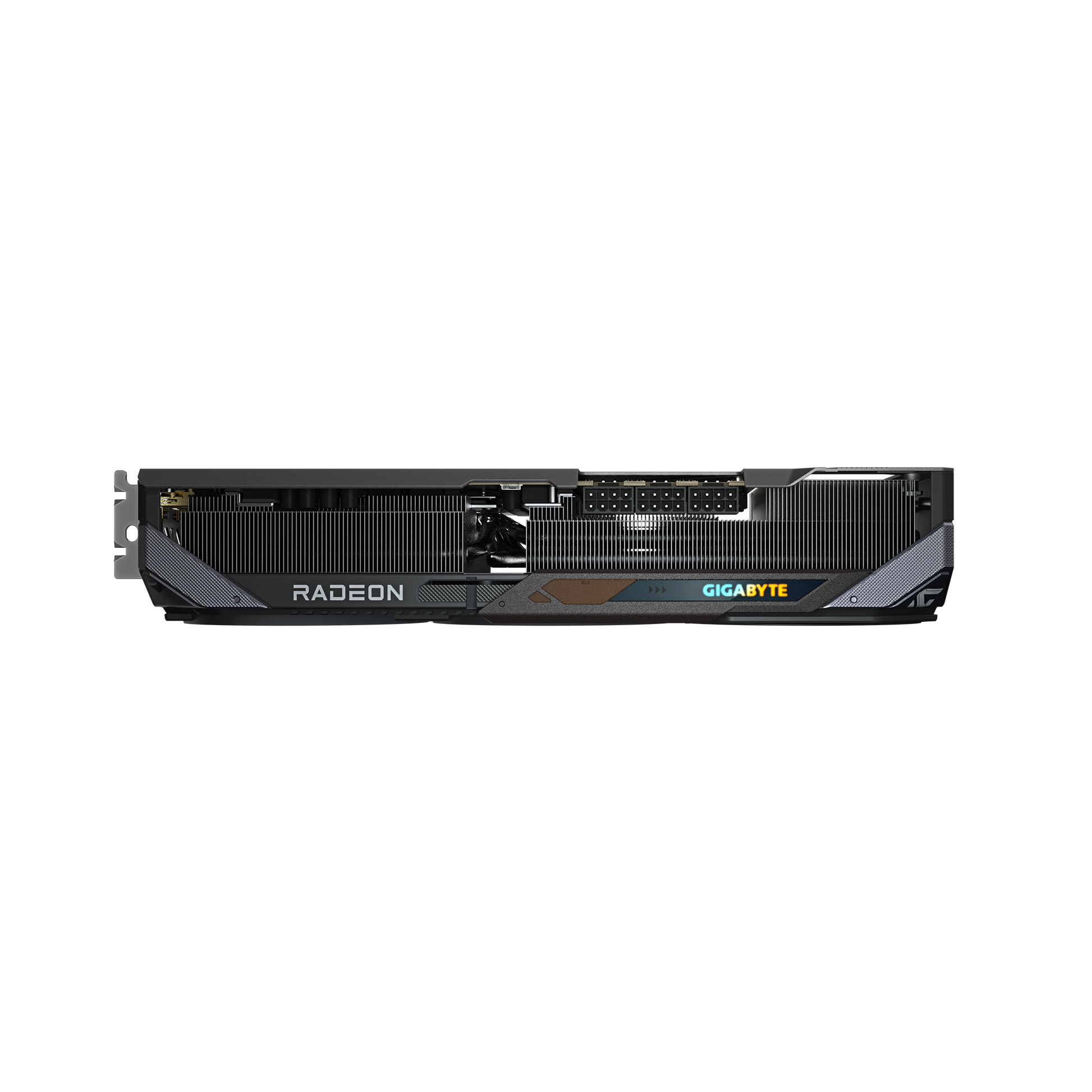

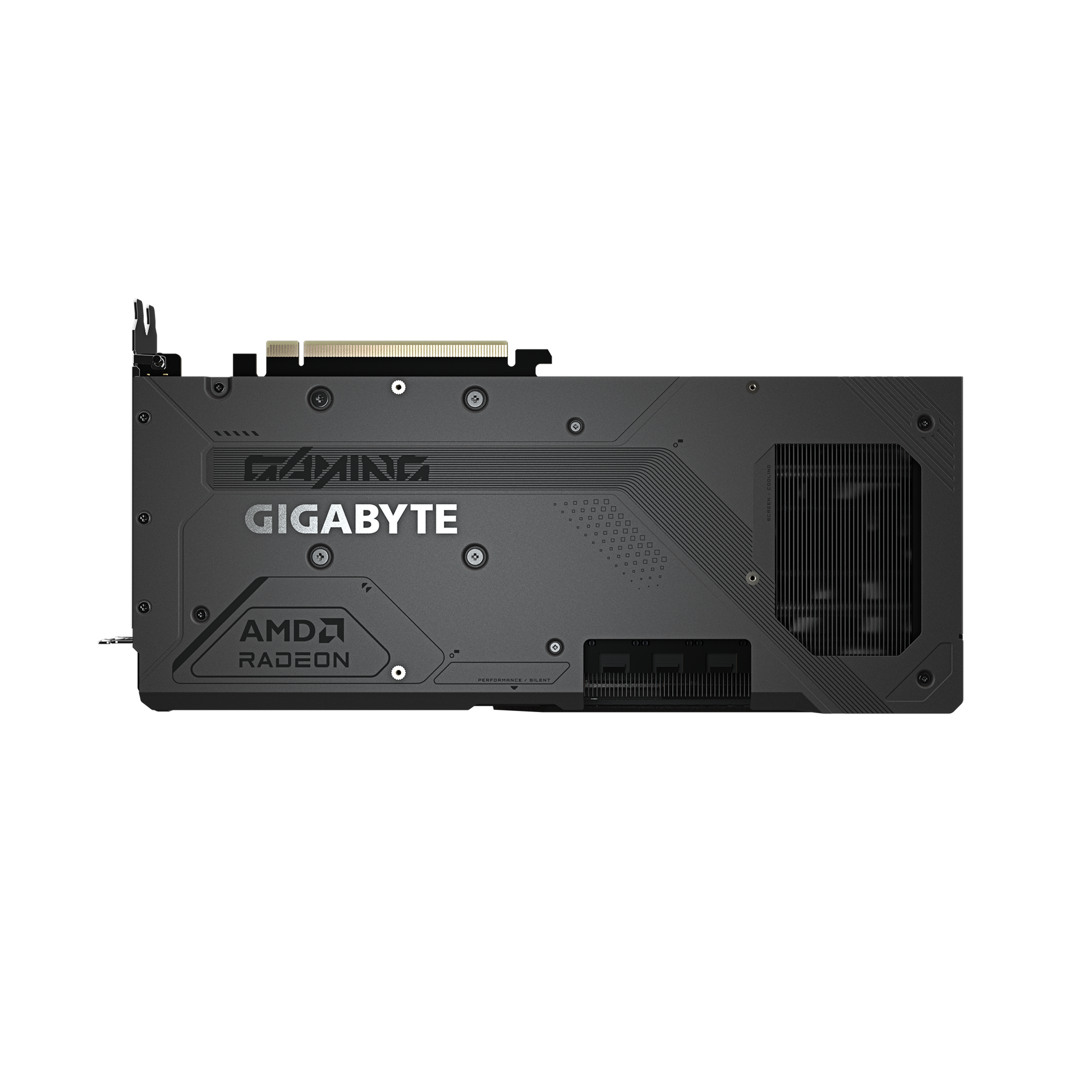

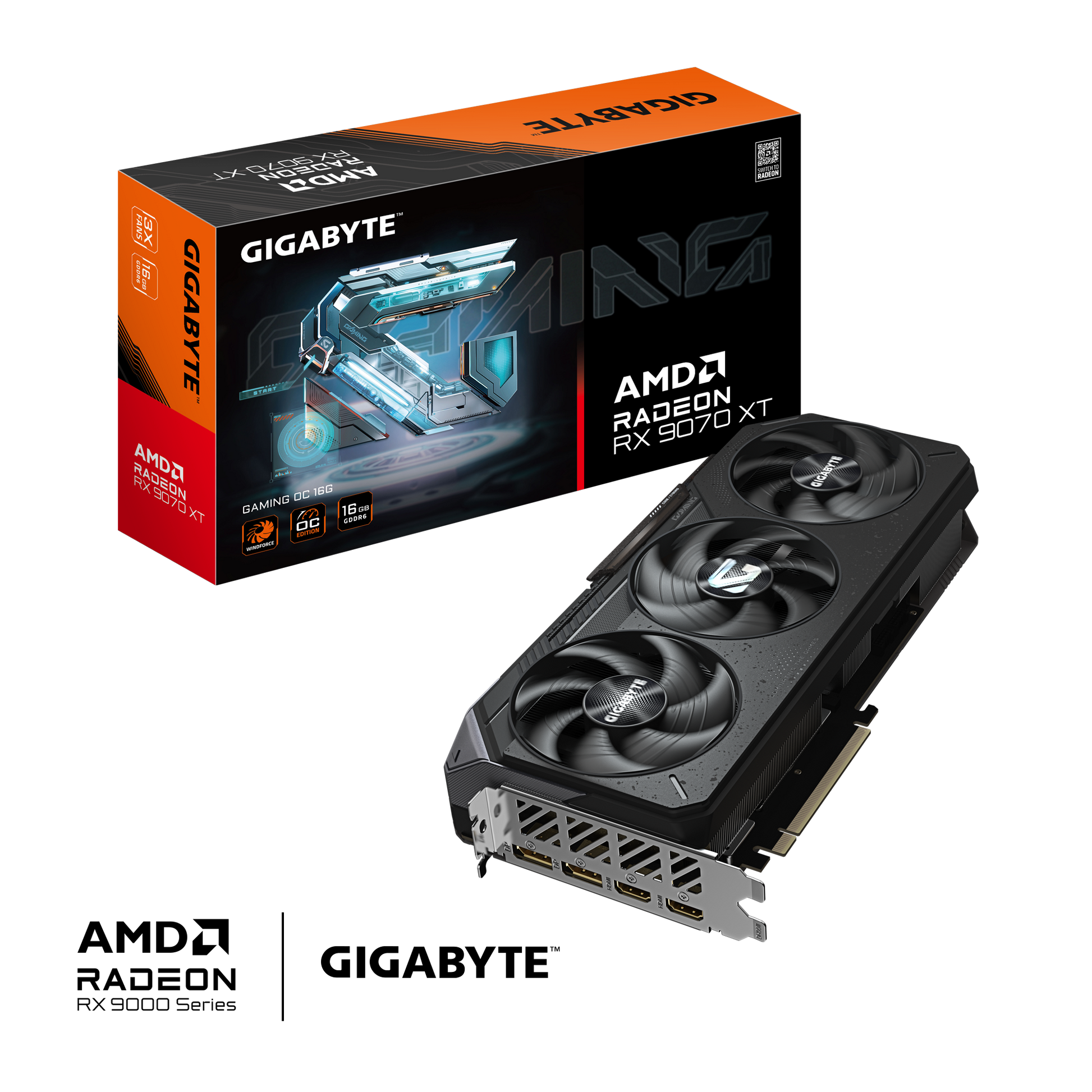

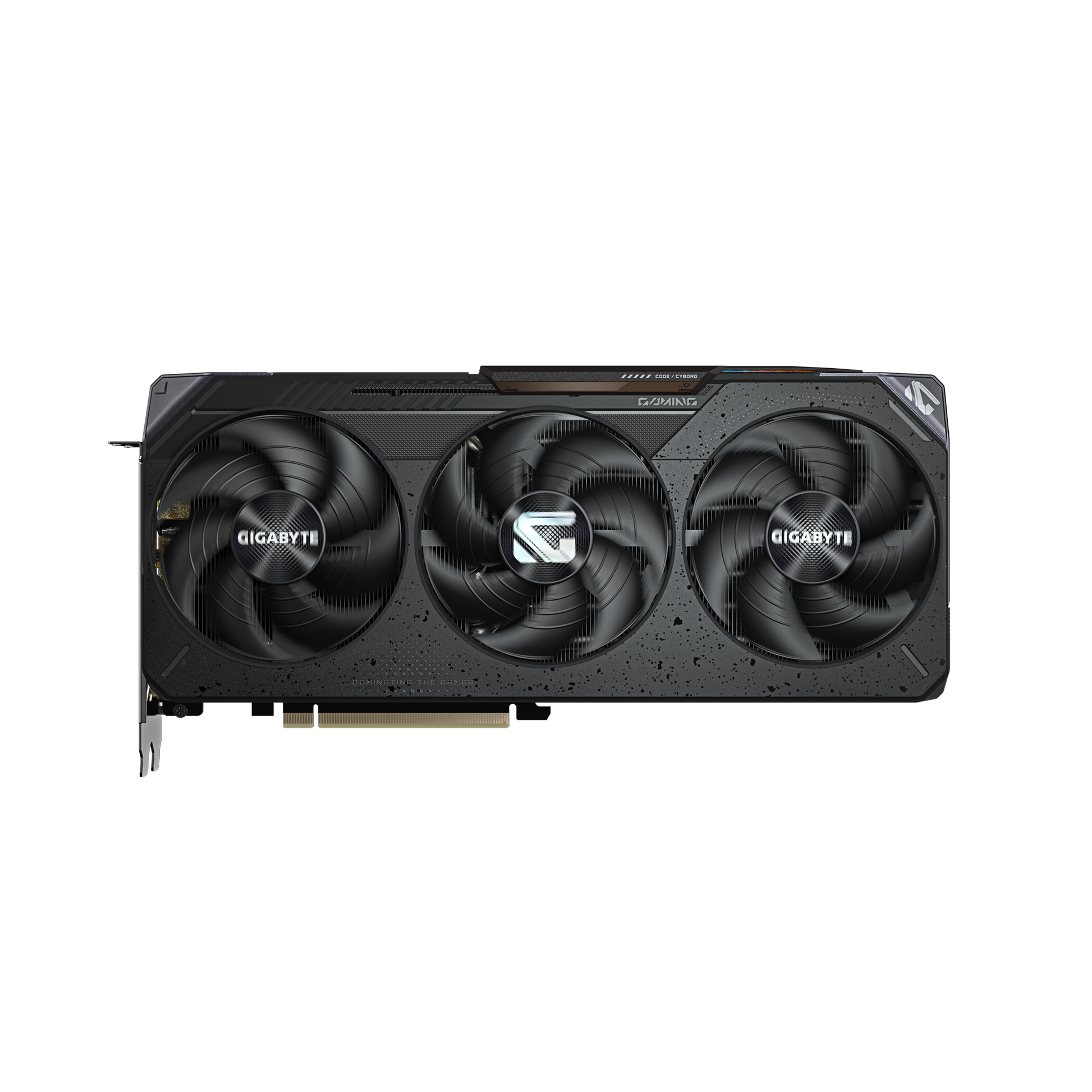

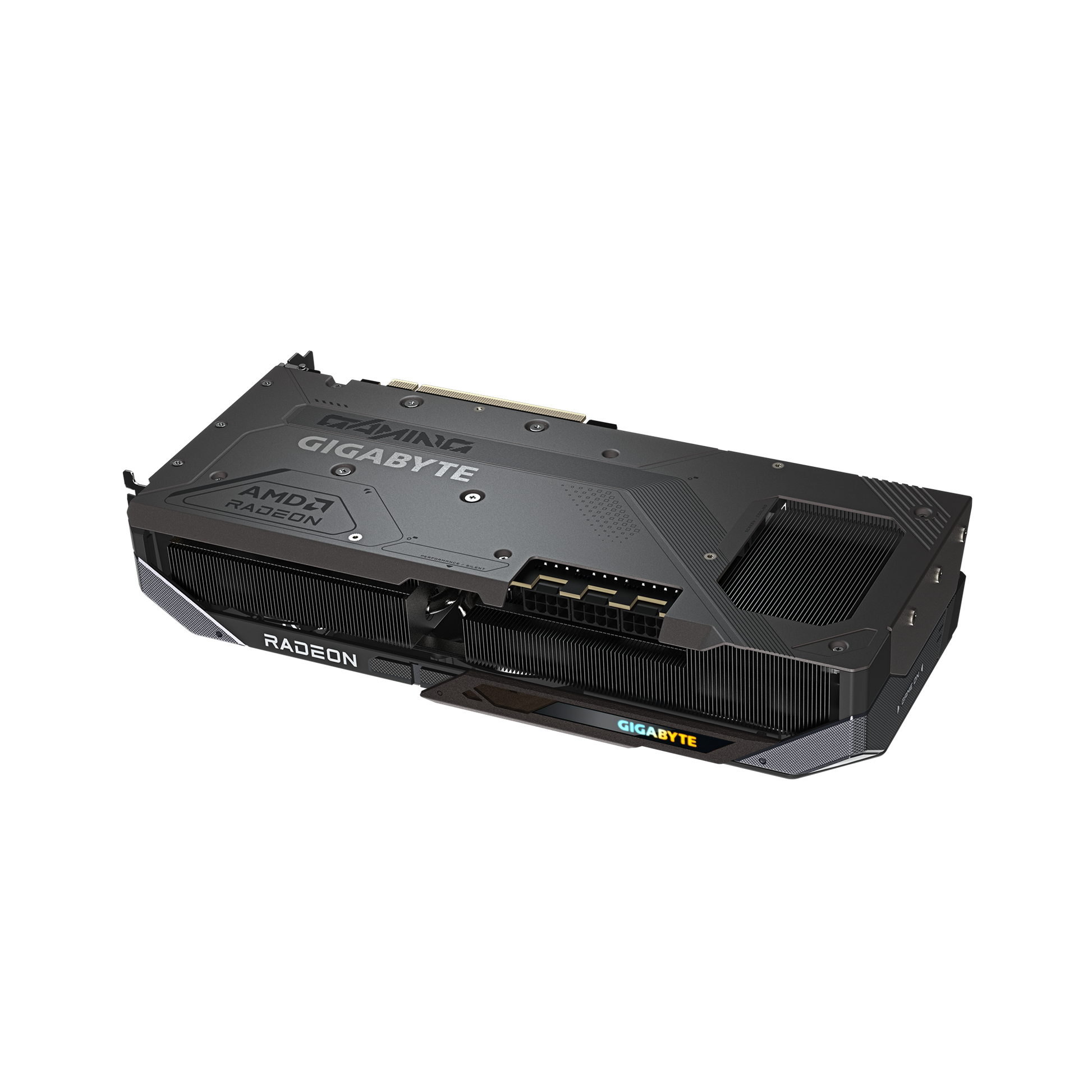

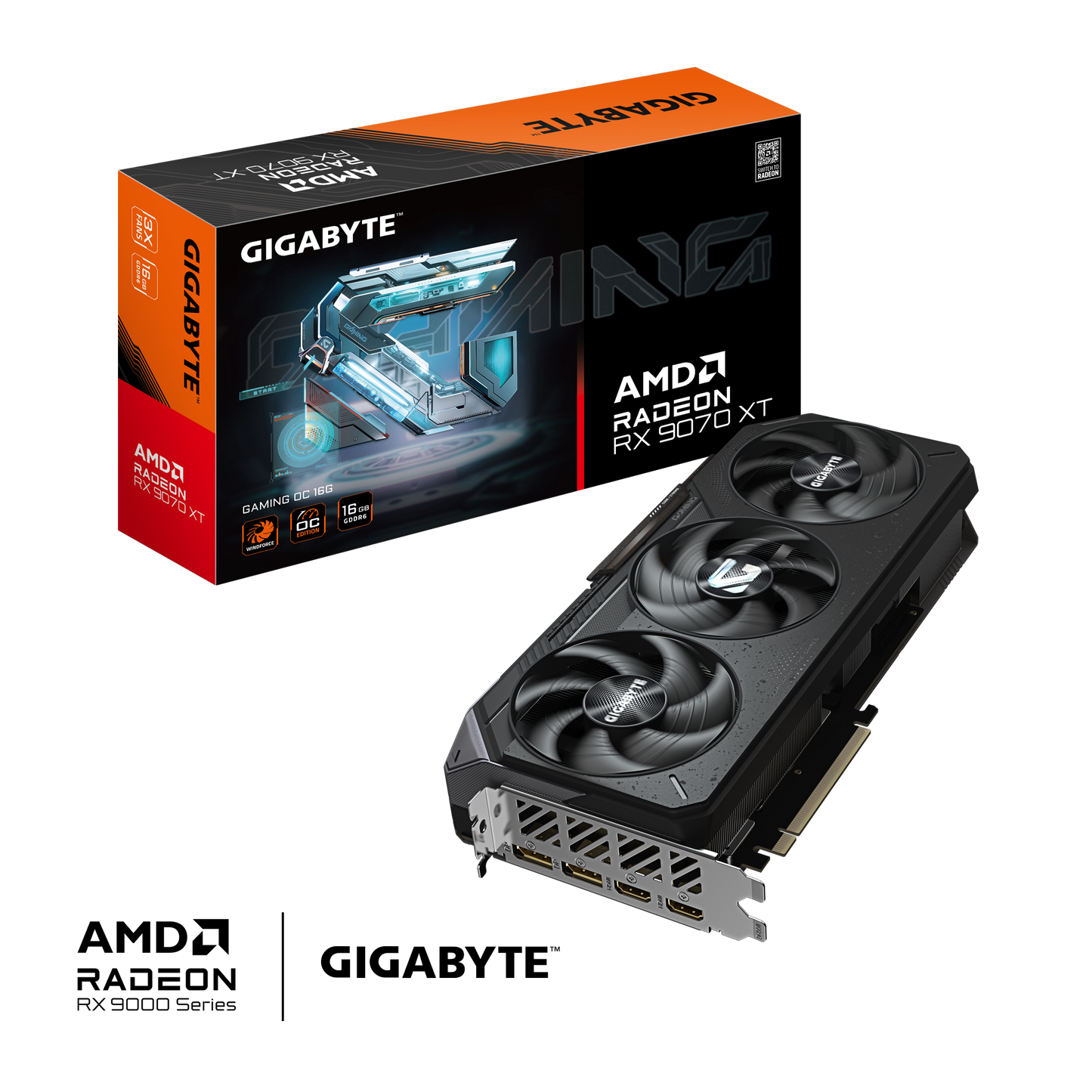

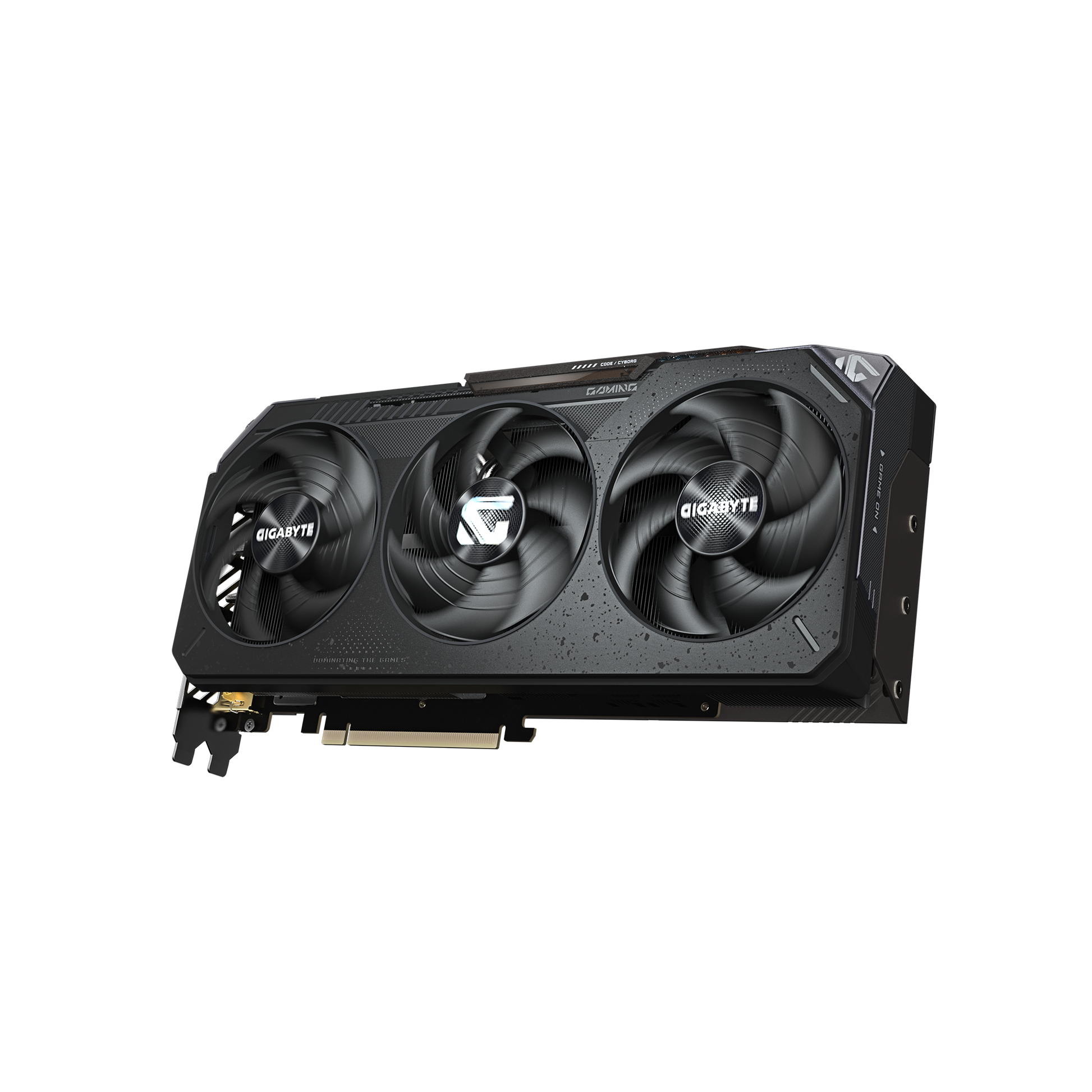

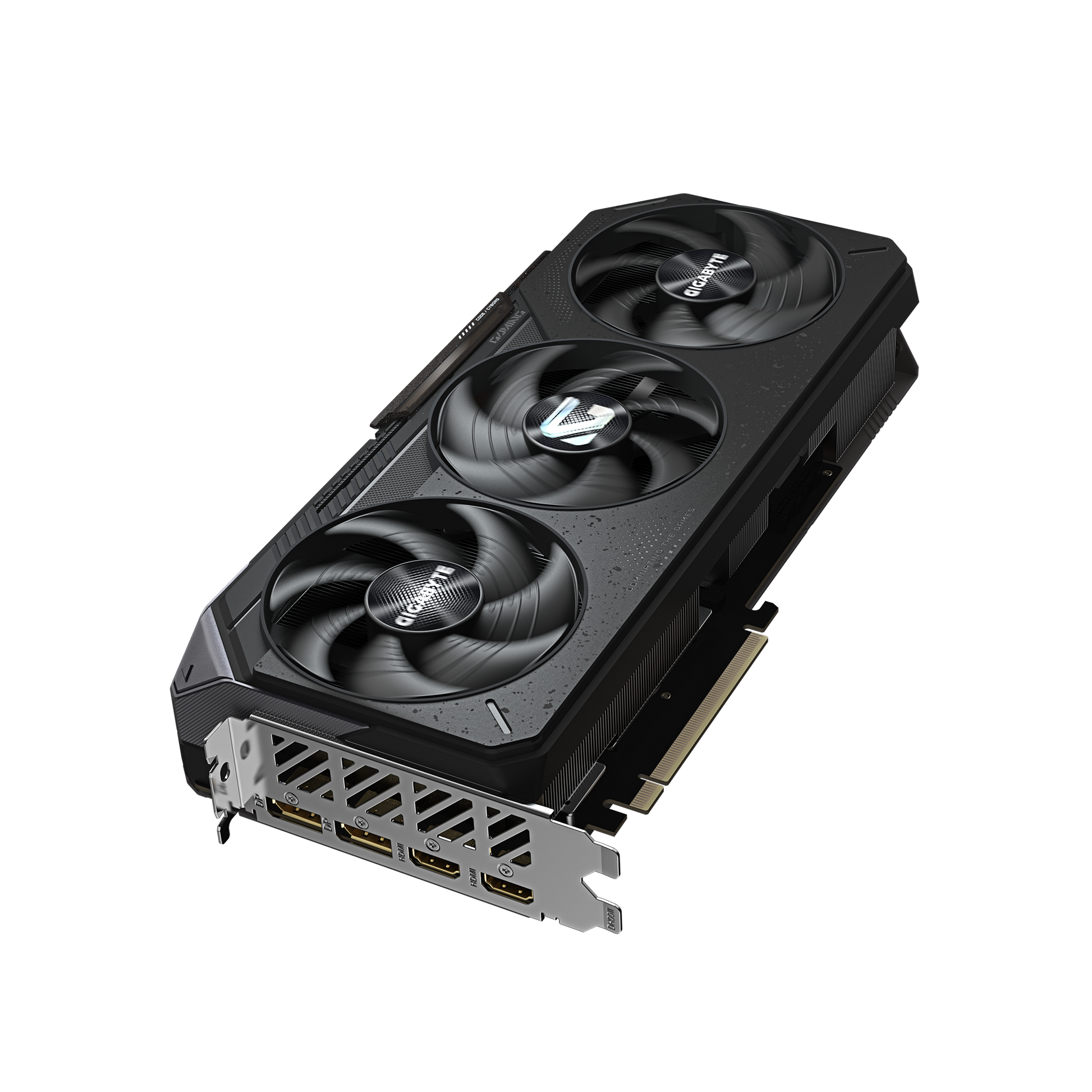

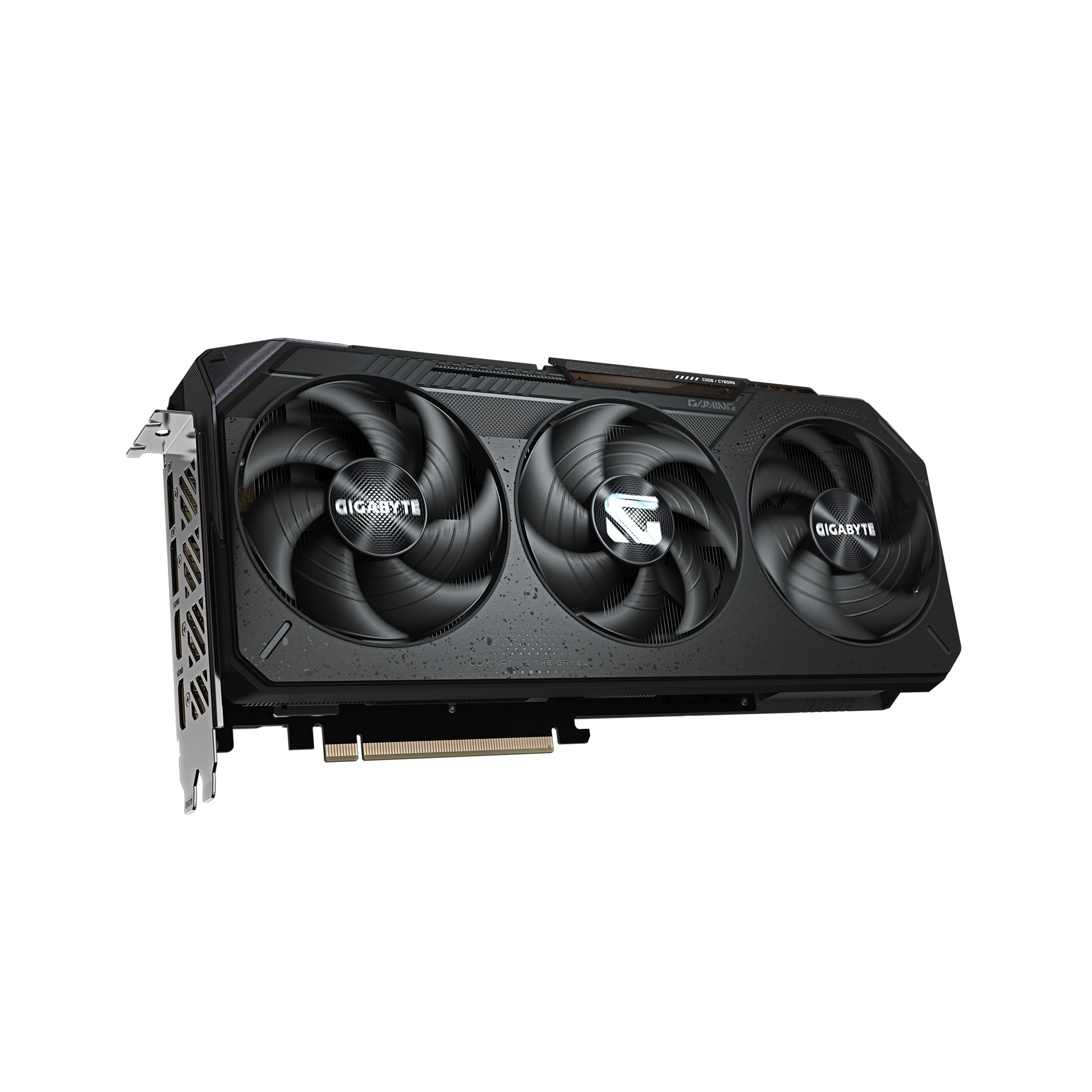

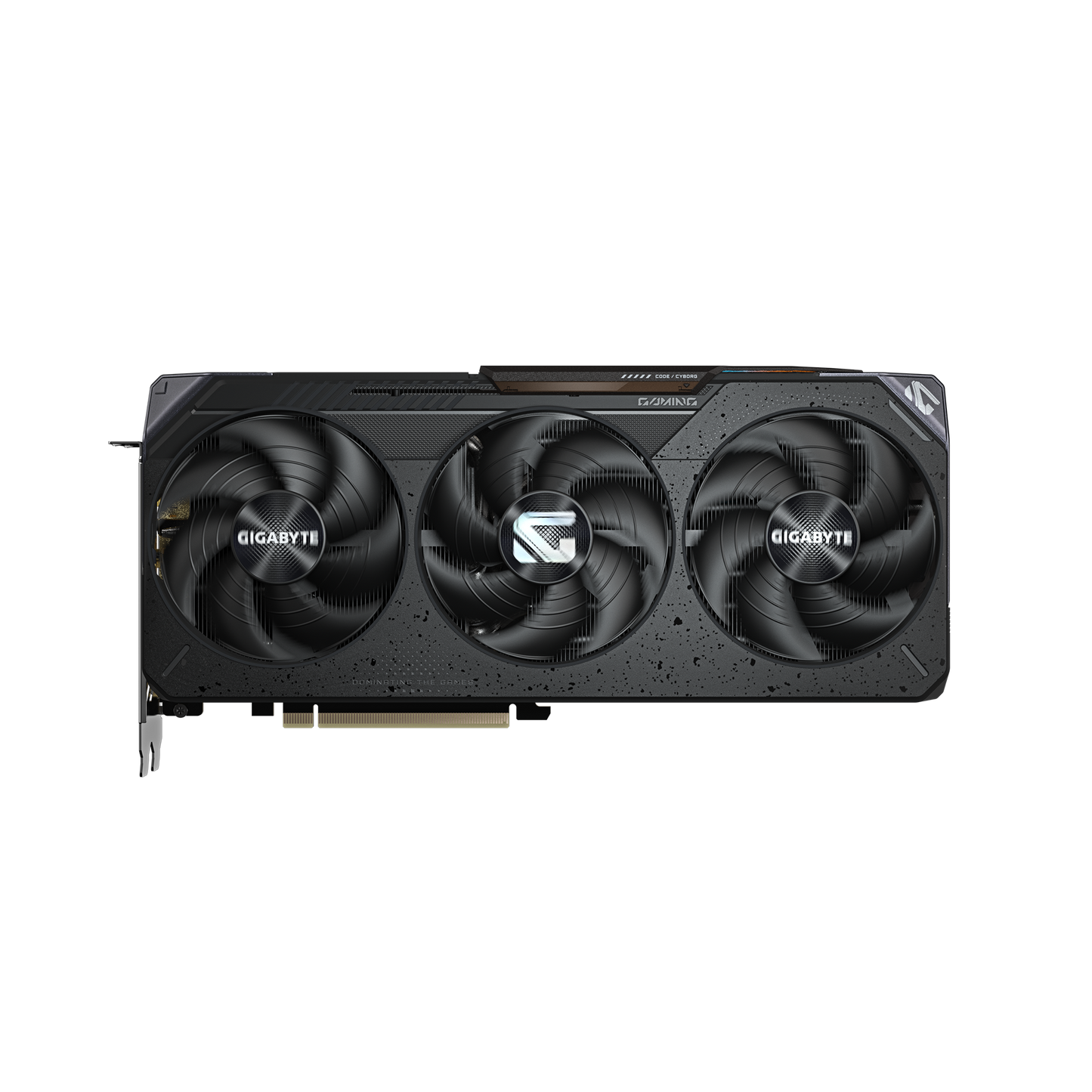

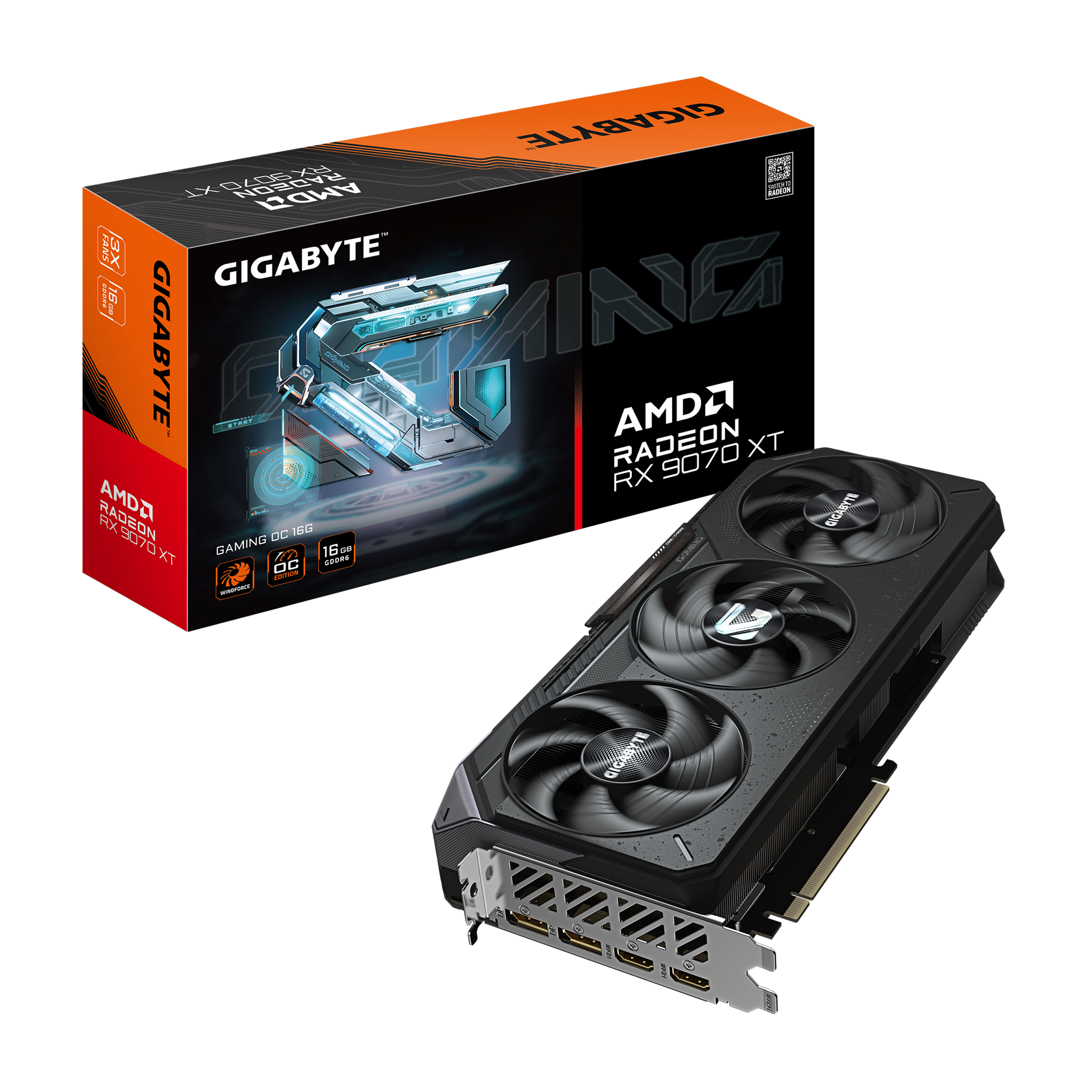

GIGABYTE GAMING R9070X GV-R9070XTGAMING OC-16GD Graphics Card

Radeon™ RX 9070 XT GAMING OC 16G
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel,  RGB Halo
Dual BIOS (Performance / Silent)

Graphics Processing        Radeon™ RX 9070 XT
Core Clock
Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
Stream Processors        4096
Memory Clock            20 Gbps
Memory Size                16GB
Memory Type            GDDR6
Memory Bus                256 bit
Card Bus                    PCI-E 5.0
Digital max resolution        7680x4320
Multi-view                4
Card size                L=288 W=132 H=56 mm
PCB Form                ATX
DirectX                    DirectX 12 API
OpenGL                    4.6
Recommended PSU        850W
Power Connectors            8 pin*3

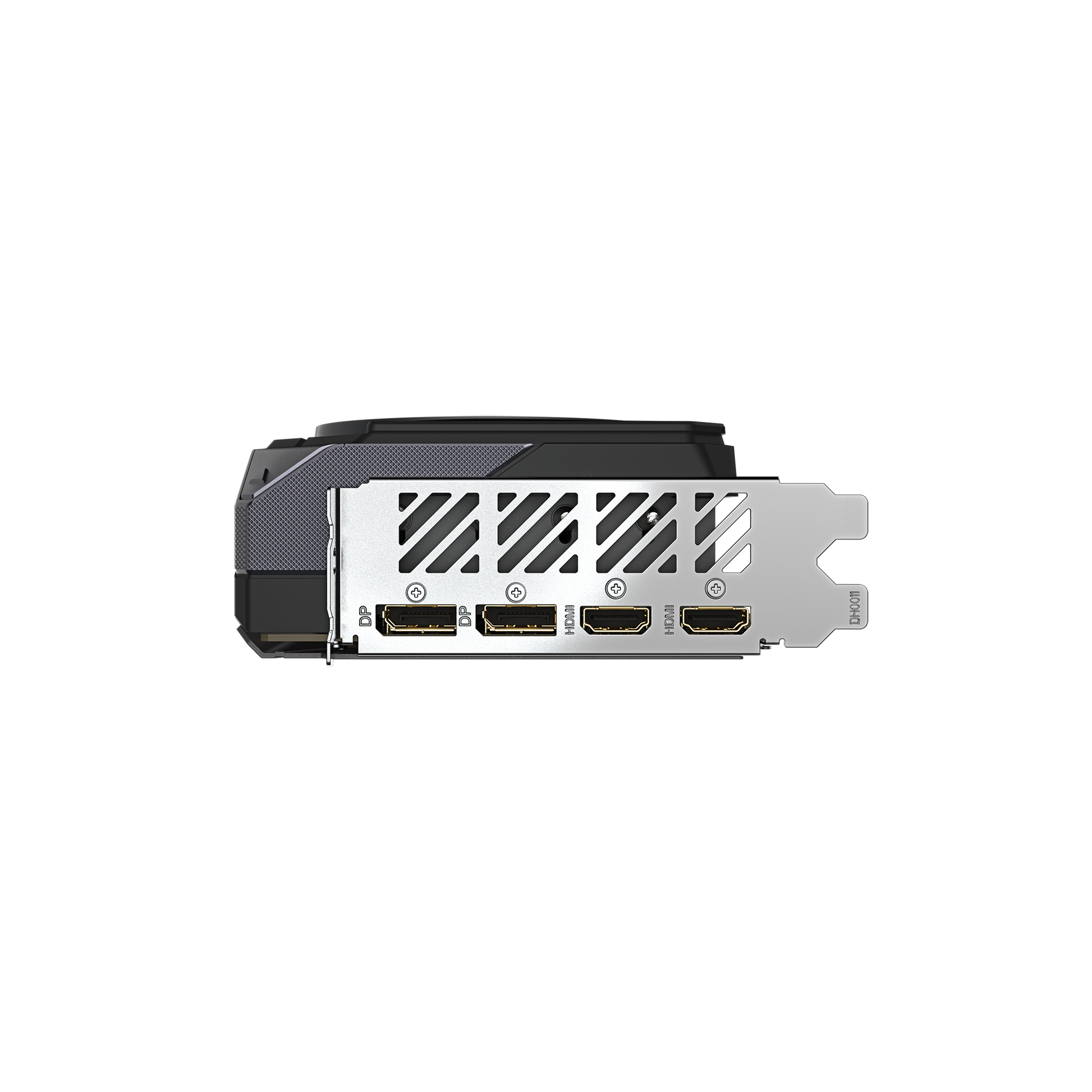

Output                    DisplayPort 2.1a *2, HDMI 2.1b *2
Accessories
Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
