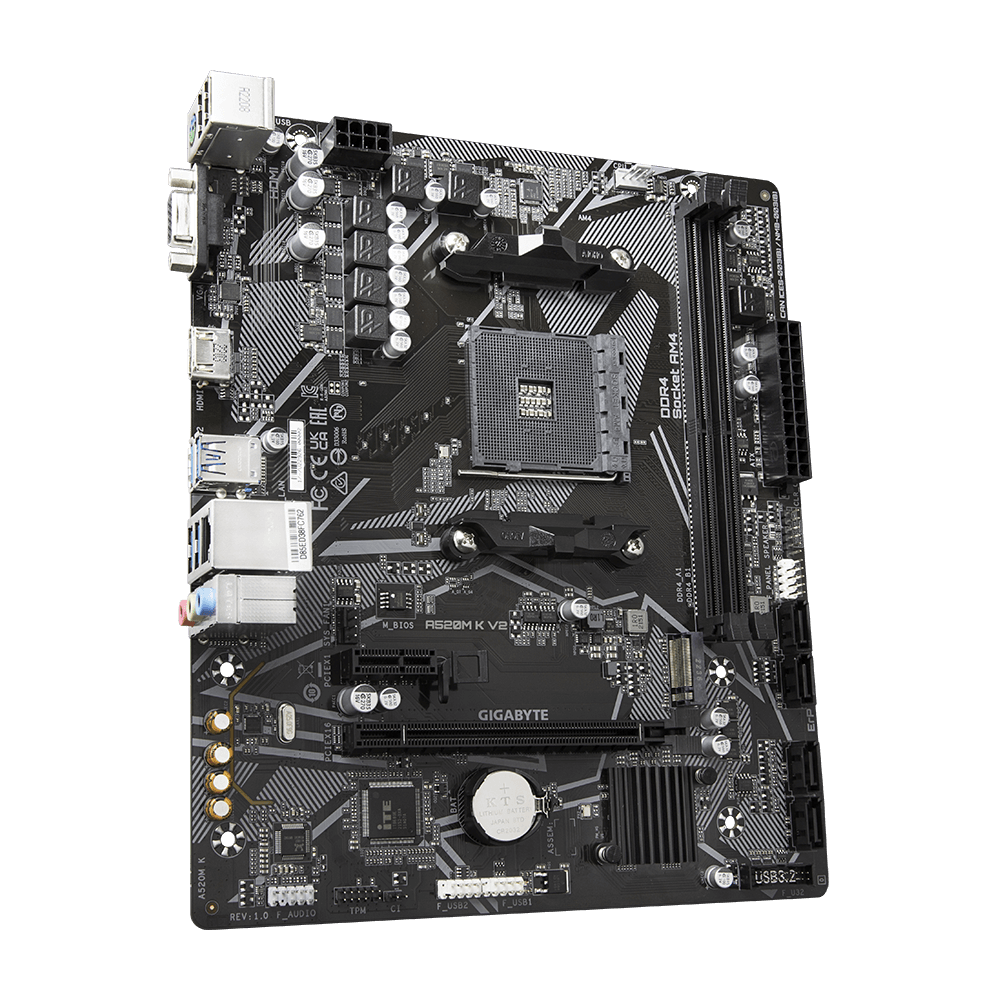

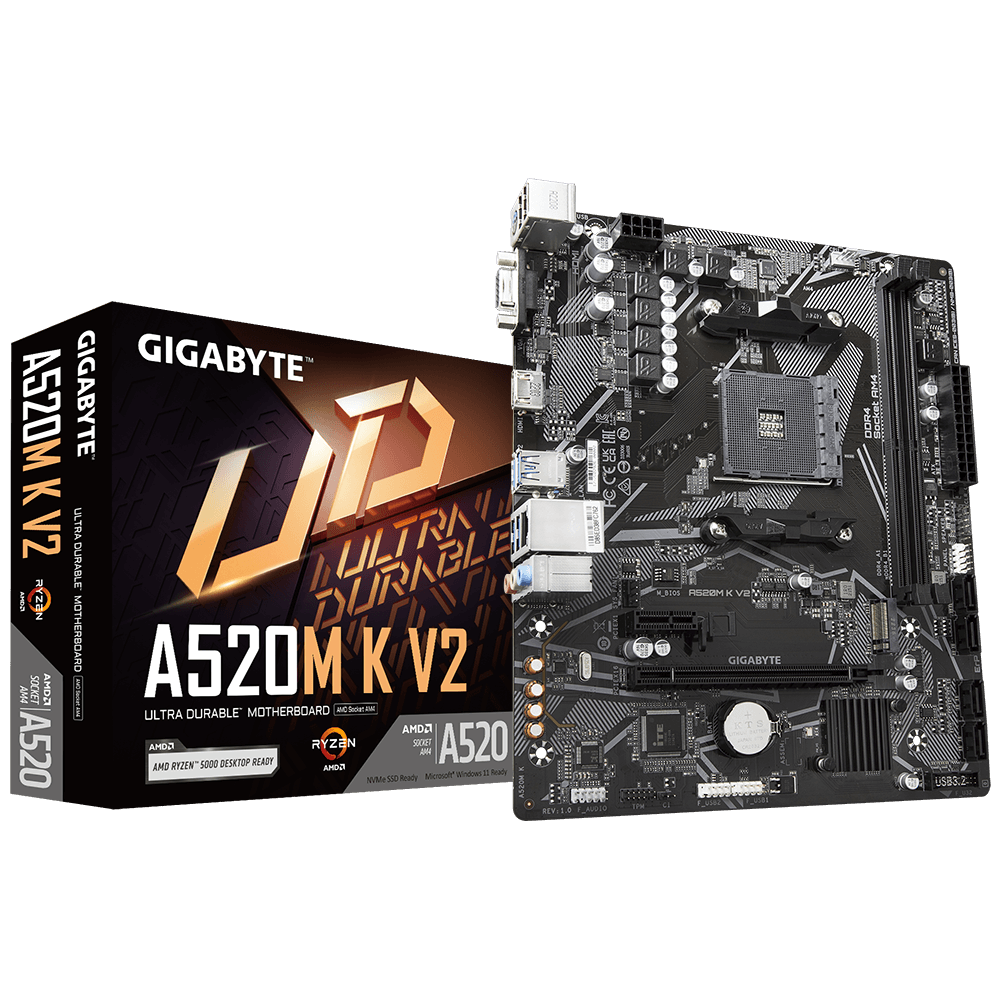

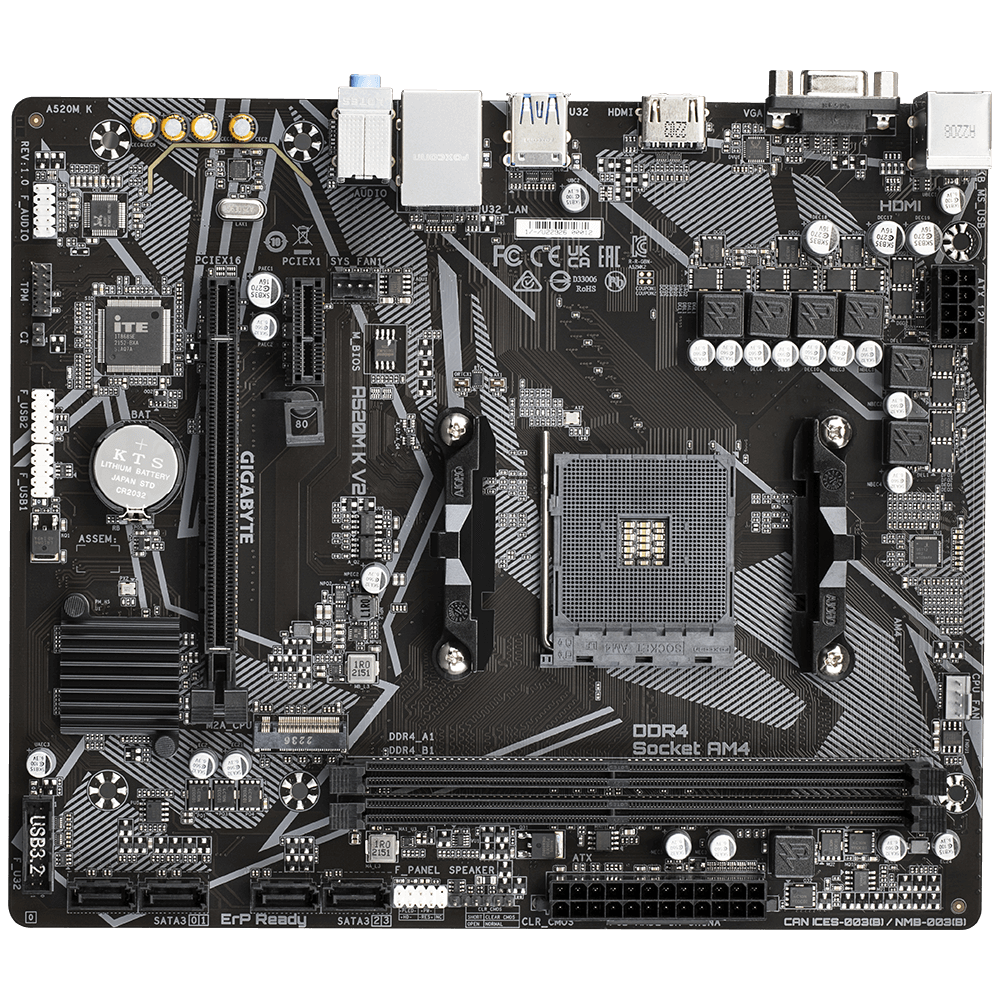

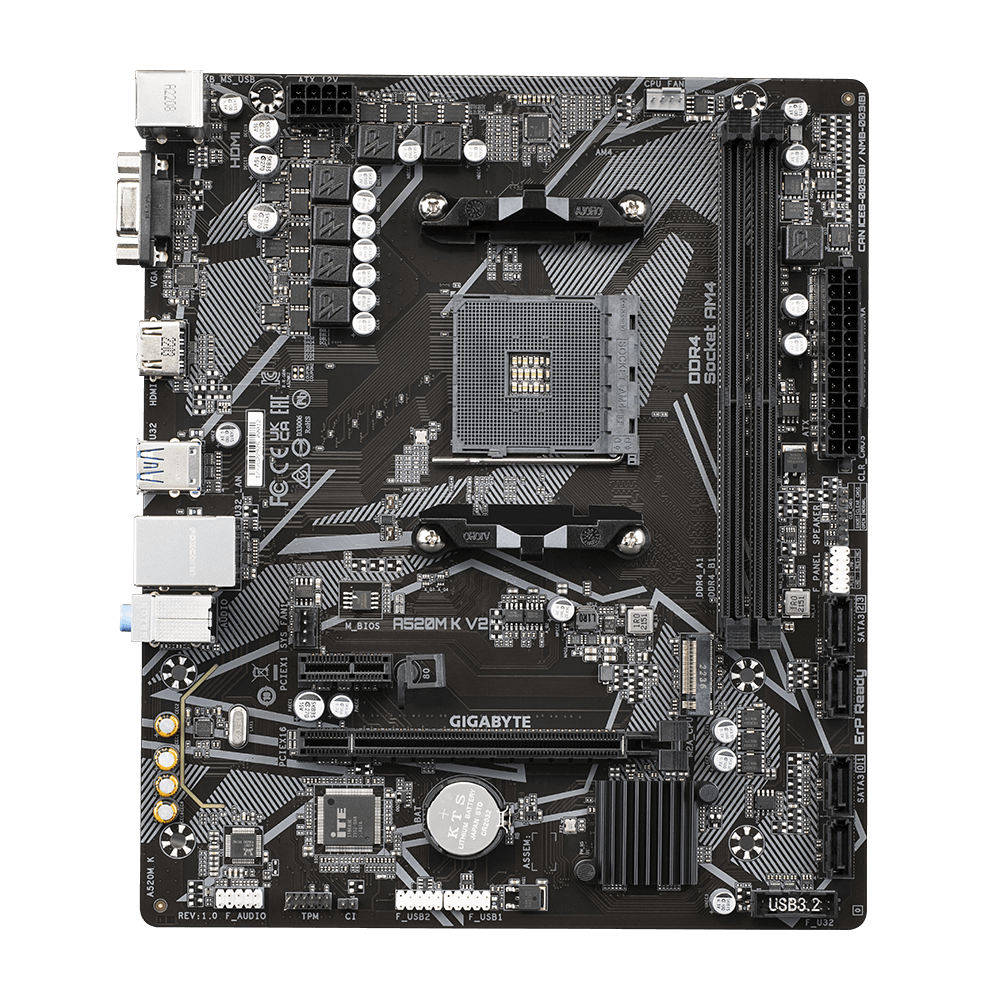

GIGABYTE Ultra Durable AM5 A520 MATX GA-A520M K V2 Motherboard AMD A520 Series (supports AMD Ryzen™ 5000 Series / Ryzen™ 5000 G Series / Ryzen™ 4000 G Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series processors)
A520M K V2
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GbE LAN with Bandwidth Management
8-Channel HD Audio with High Quality Audio Capacitors
Rear HDMI and D-sub for Multi-display Support
AMD A520
支援2*DDR4 5100(O.C) ~ 2133 MT/s記憶體模組
- Sound
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Connectivity
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
- Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
- USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- Motherboard Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

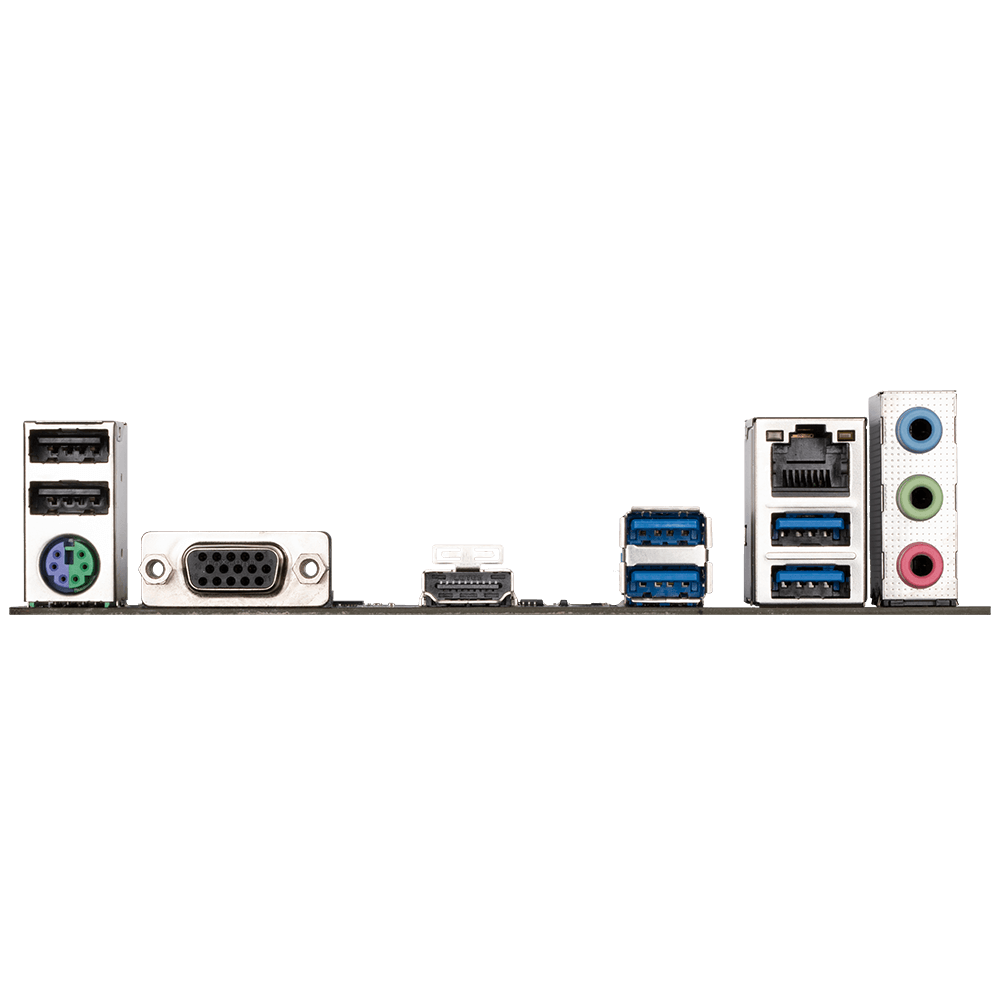

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
- PCB Spec
Micro ATX Form Factor; 23.3cm x 19.8cm
- Warranty
3 Years
Official website: GA-A520M K V2
