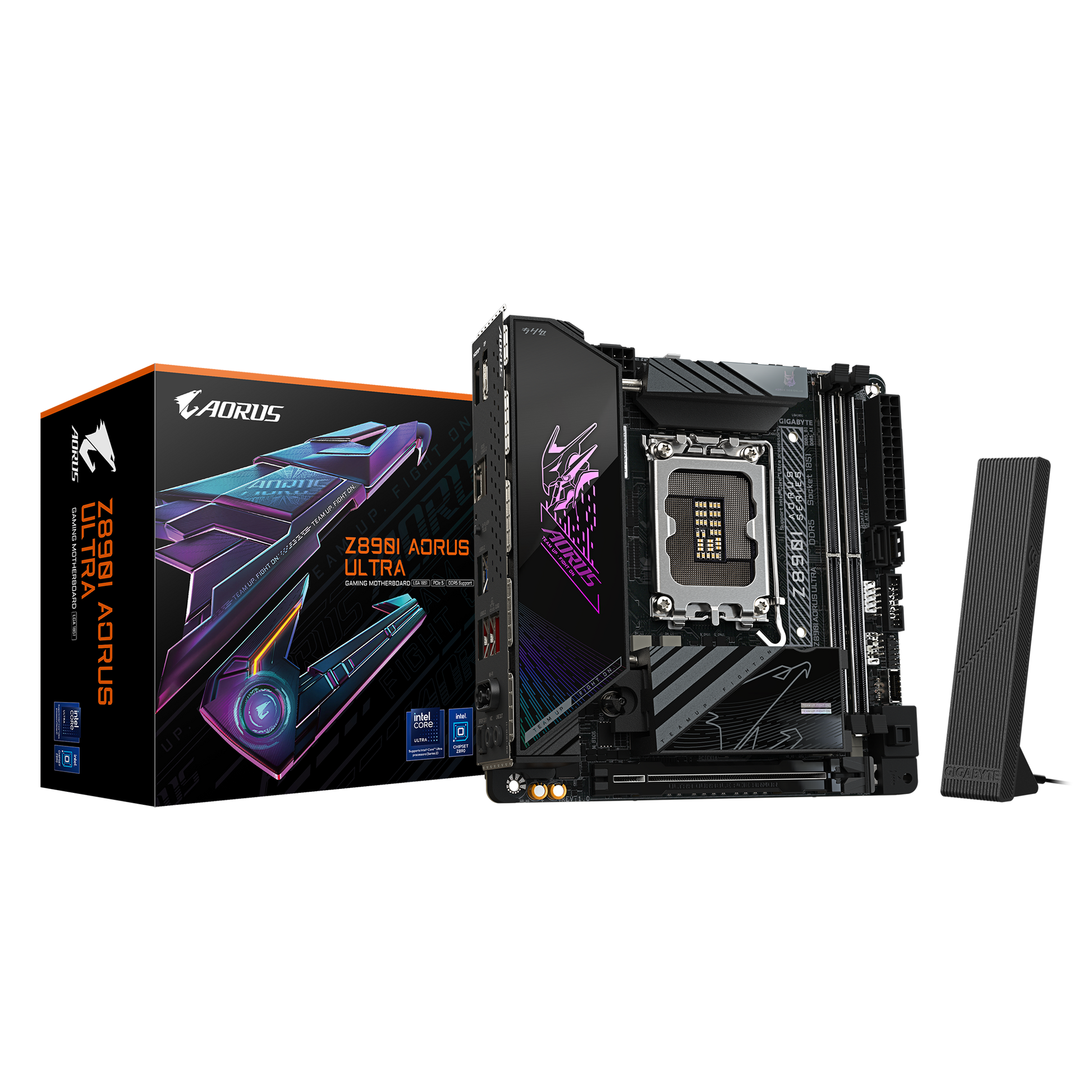

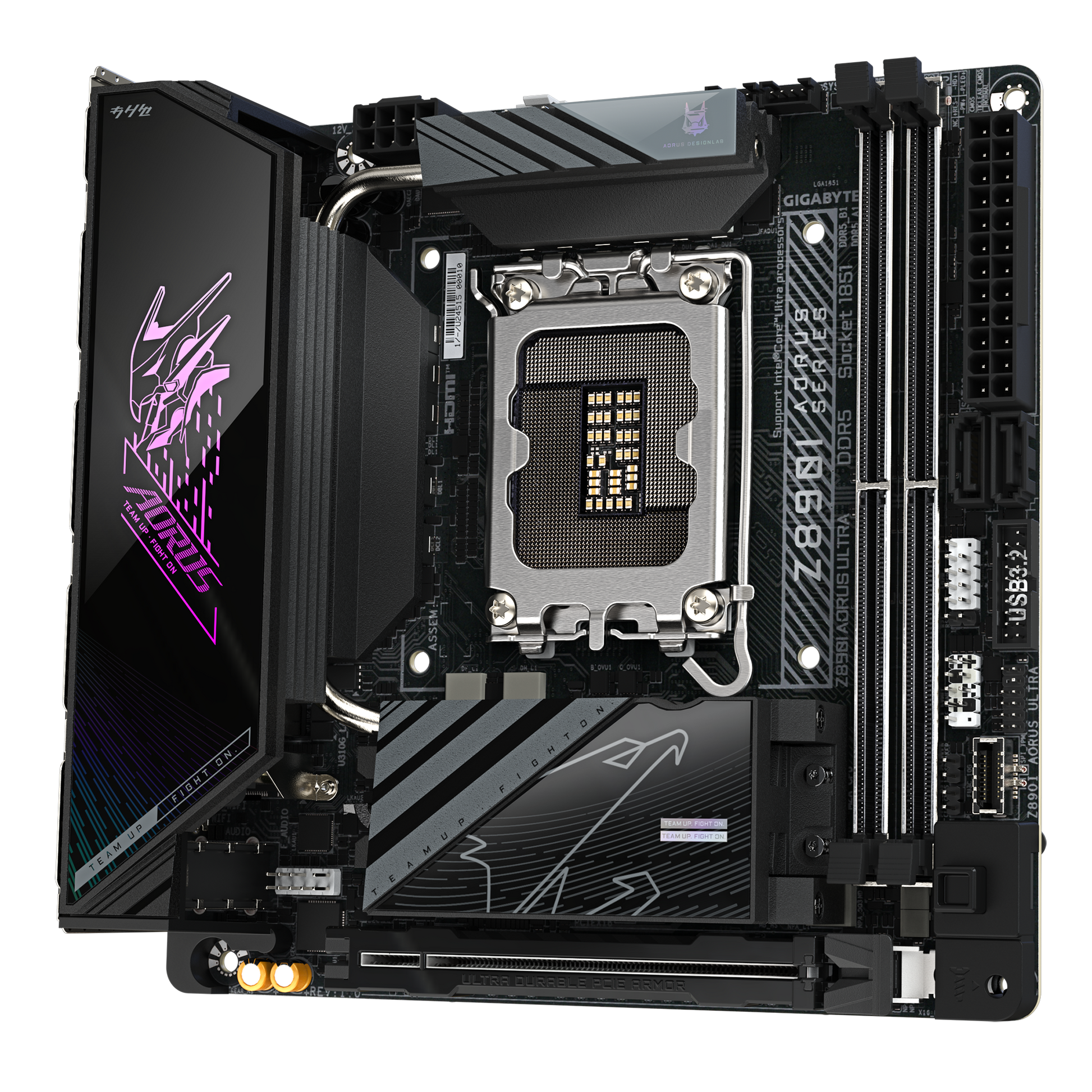

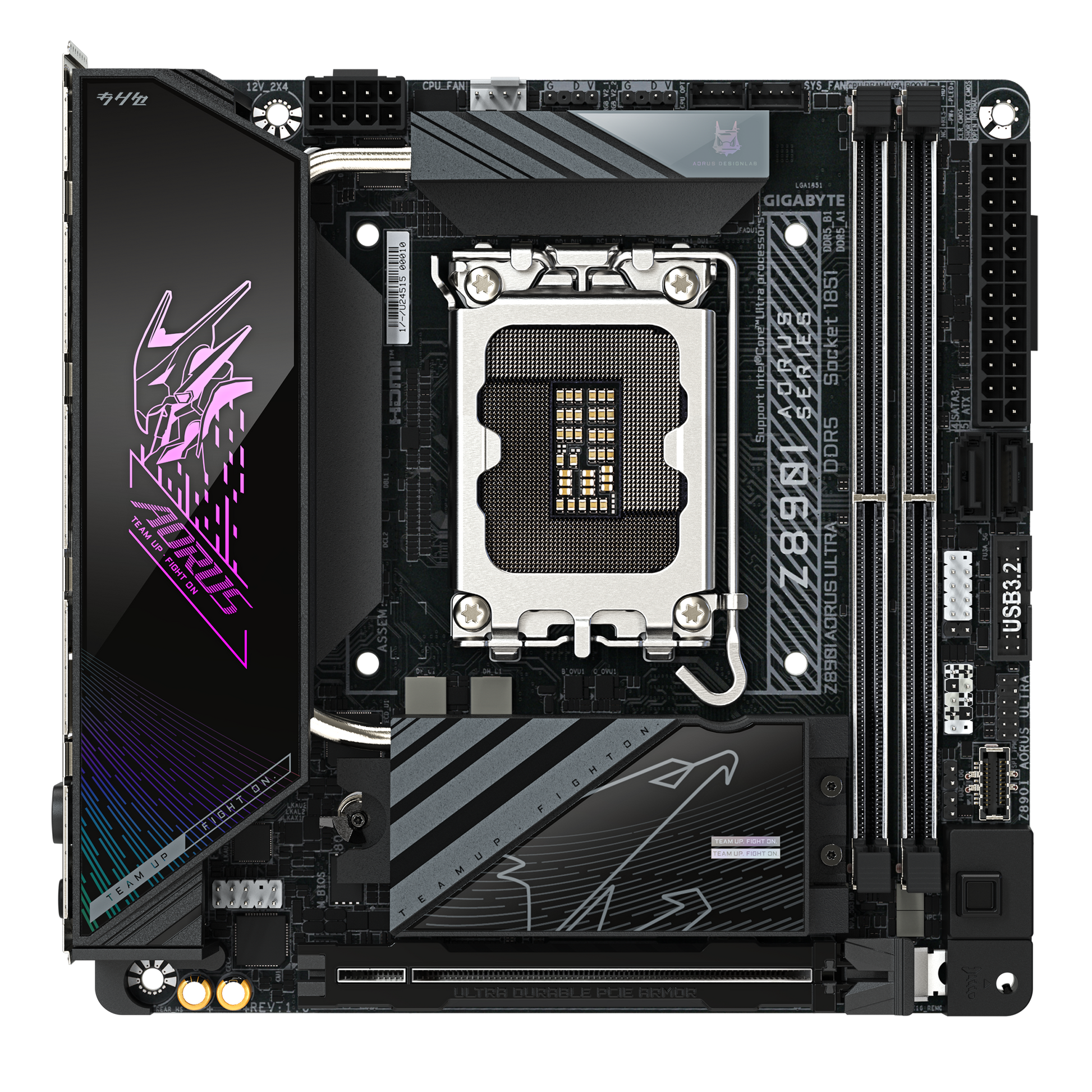

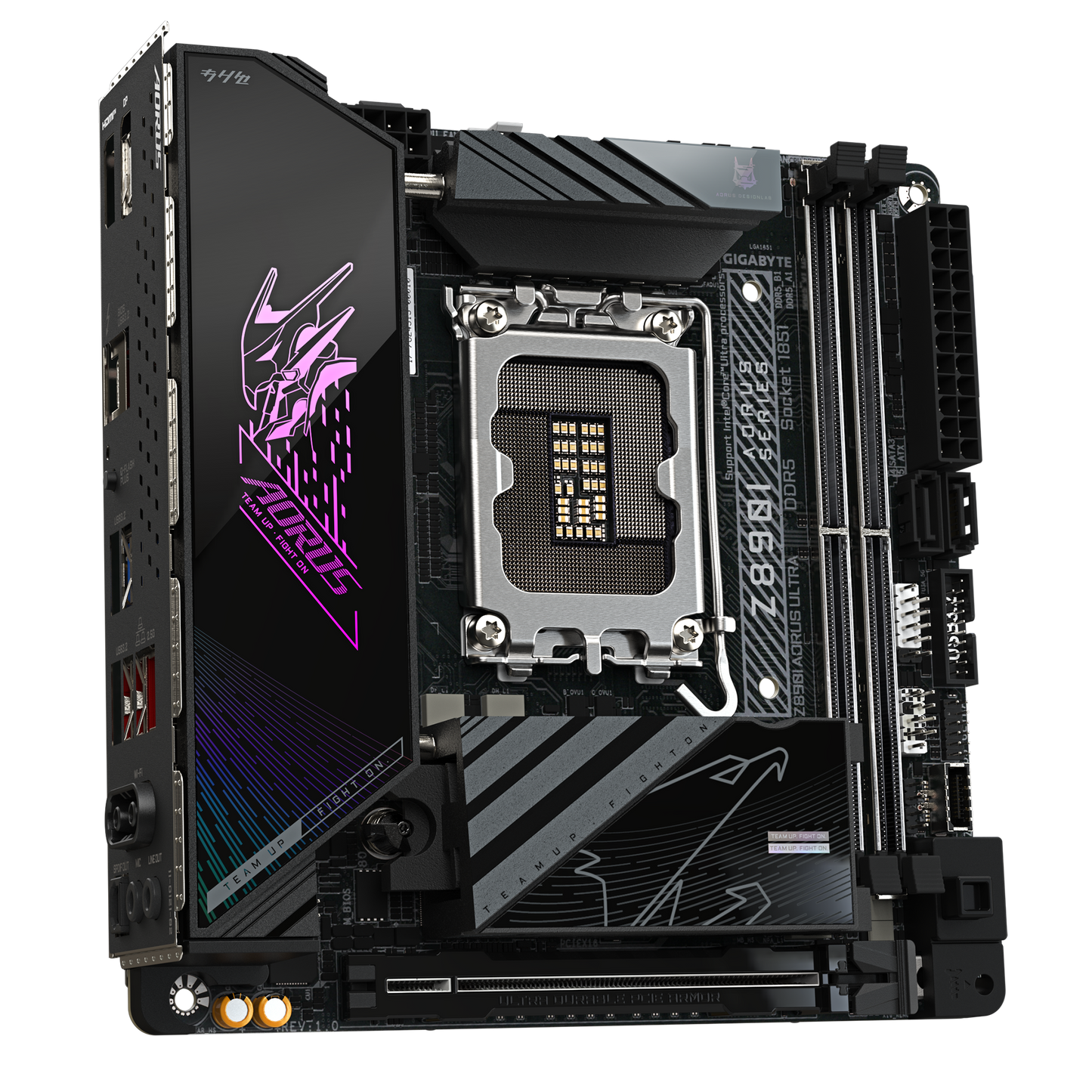

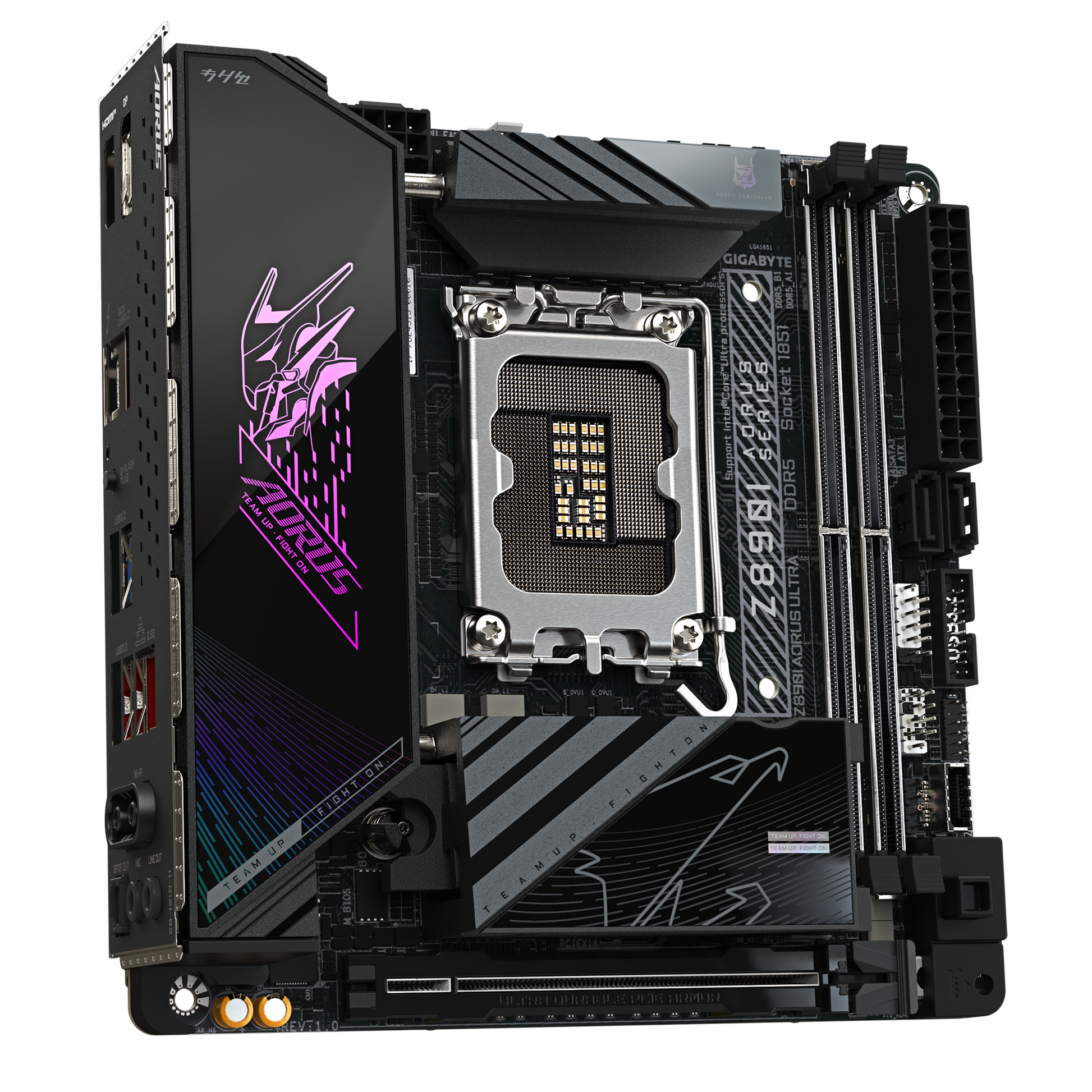

GIGABYTE AORUS Z890 ITX GA-Z890I AORUS ULTRA Motherboard (Supports 15th Gen Intel® Core™ Ultra Processors)
Z890I AORUS ULTRA
Digital 8+1+2 phases VRM solution
2*DDR5 with XMP Memory Module Support

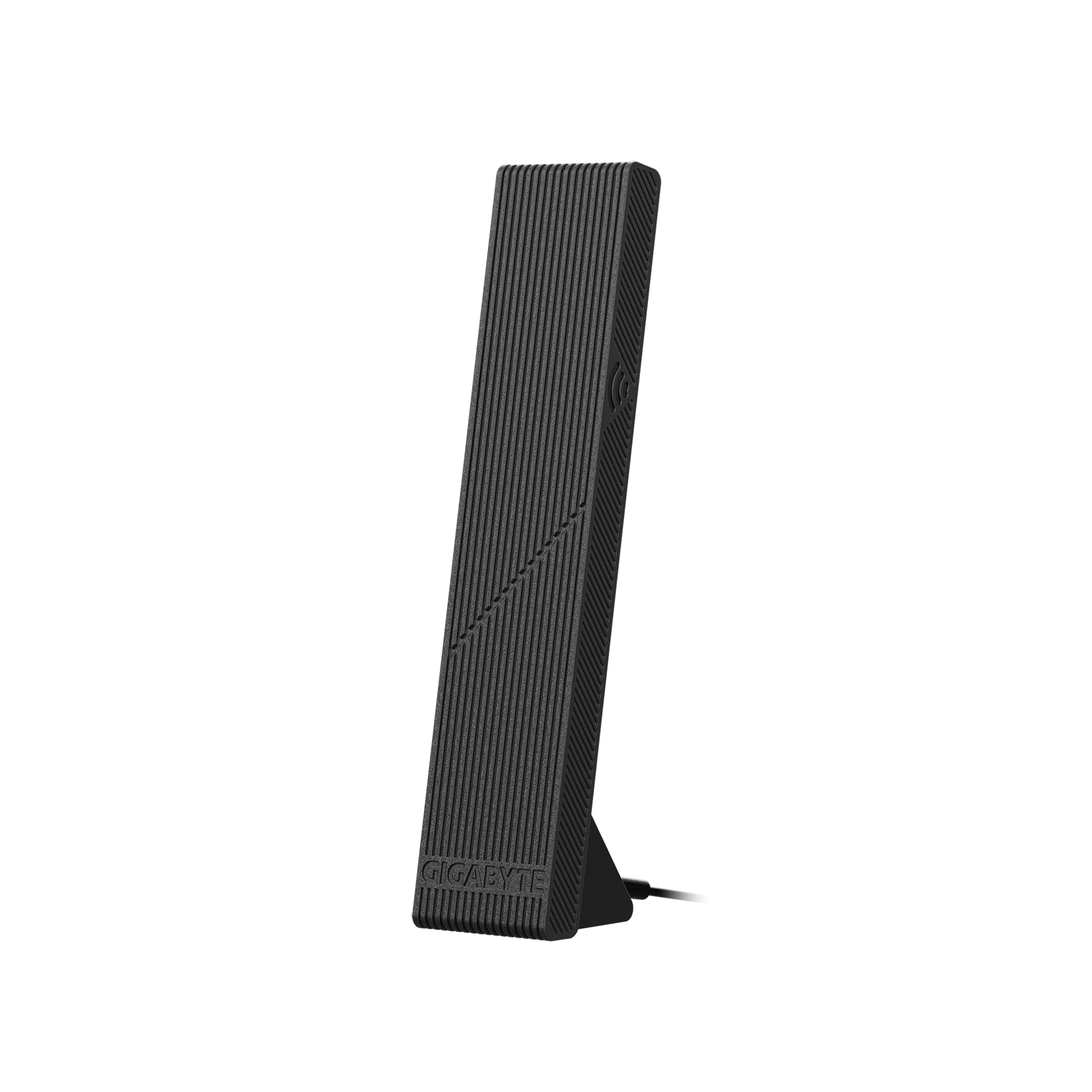

Quick and easy design for Wi-Fi antenna installation
PCIe and M.2 slots with Quick Release & Screwless Design
2*M.2 slots, including 1* PCIe 5.0 x4
2.5GbE LAN & Wi-Fi 7
TB 4 Type-C with DP-Alt , HDMI , DisplayPort
PCIe 5.0 x16 slot with 10X strength for graphics card
Intel Z890
支援4*DDR5 9500(O.C) ~ 5600 MT/s記憶體模組
- Sound
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
- Connectivity
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 7 BE202 (BE200NGW M)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
- Expansion Slot
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
- Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
- USB
CPU:
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- Motherboard Connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

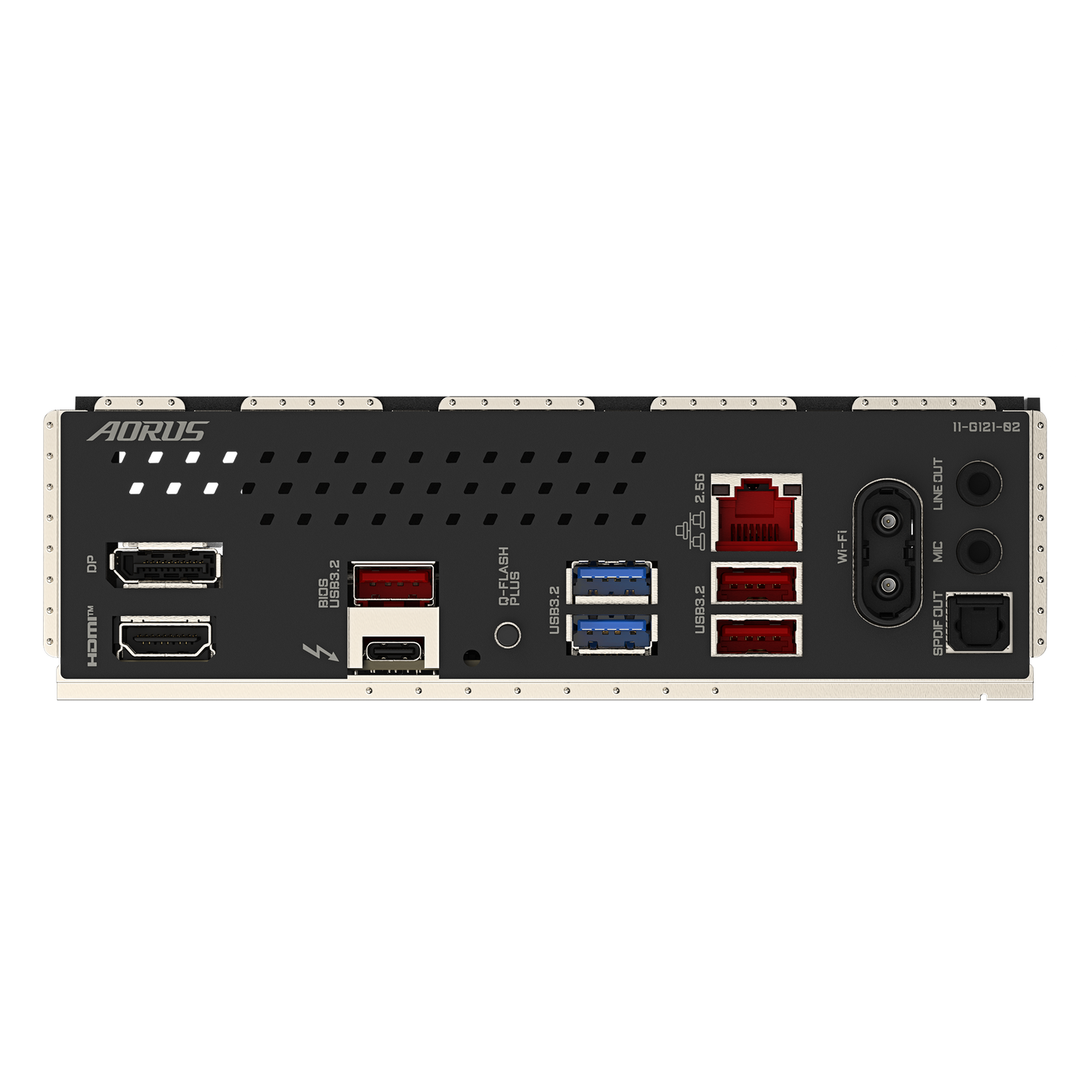

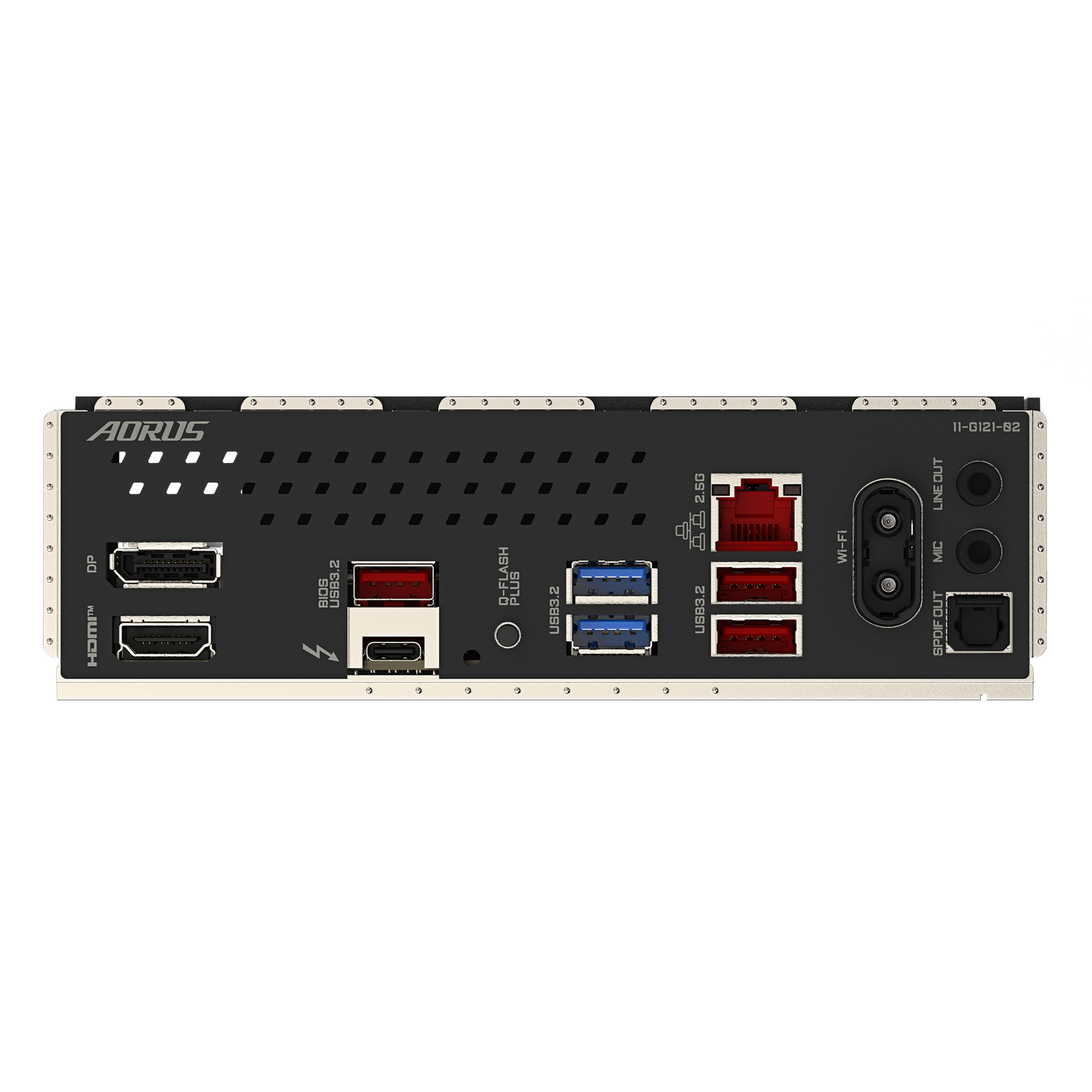

1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.
- PCB Spec
Mini-ITX Form Factor; 17.0cm x 17.0cm
- Warranty
3 Years
Official website: Z890I AORUS ULTRA - GIGABYTE 技嘉科技
